Marshall cameras for compact and remote positions.
Miniature POV cameras for sets, lecterns, goals and outdoor mounts, PTZ cameras with and without auto-tracking, and the controllers to drive and match them. Varto helps select Marshall equipment around the shot, the mounting and the connection to your production system.
Prefer to talk? (888) 656-6233
// miniature POV cameras
Fixed cameras small enough to go almost anywhere.
Pick the signal path first, then the lens. All four take interchangeable M12 lenses, so the field of view is chosen for each position, and they are adjusted and matched remotely from the control room.
4K · NDI · HDMI

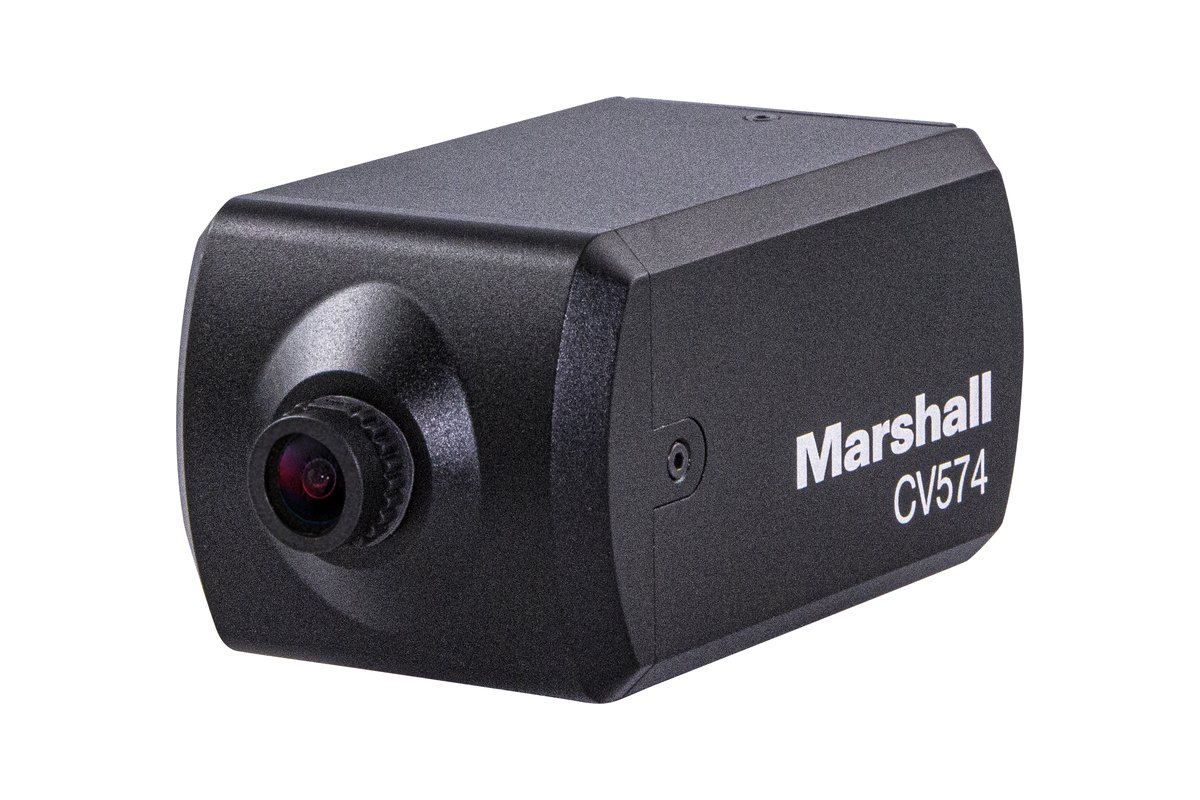

CV574
4K60 over HDMI and NDI HX2, NDI HX3 at 1080p, and power, video, audio and control on one PoE cable. It has no SDI output.
global shutter · genlock

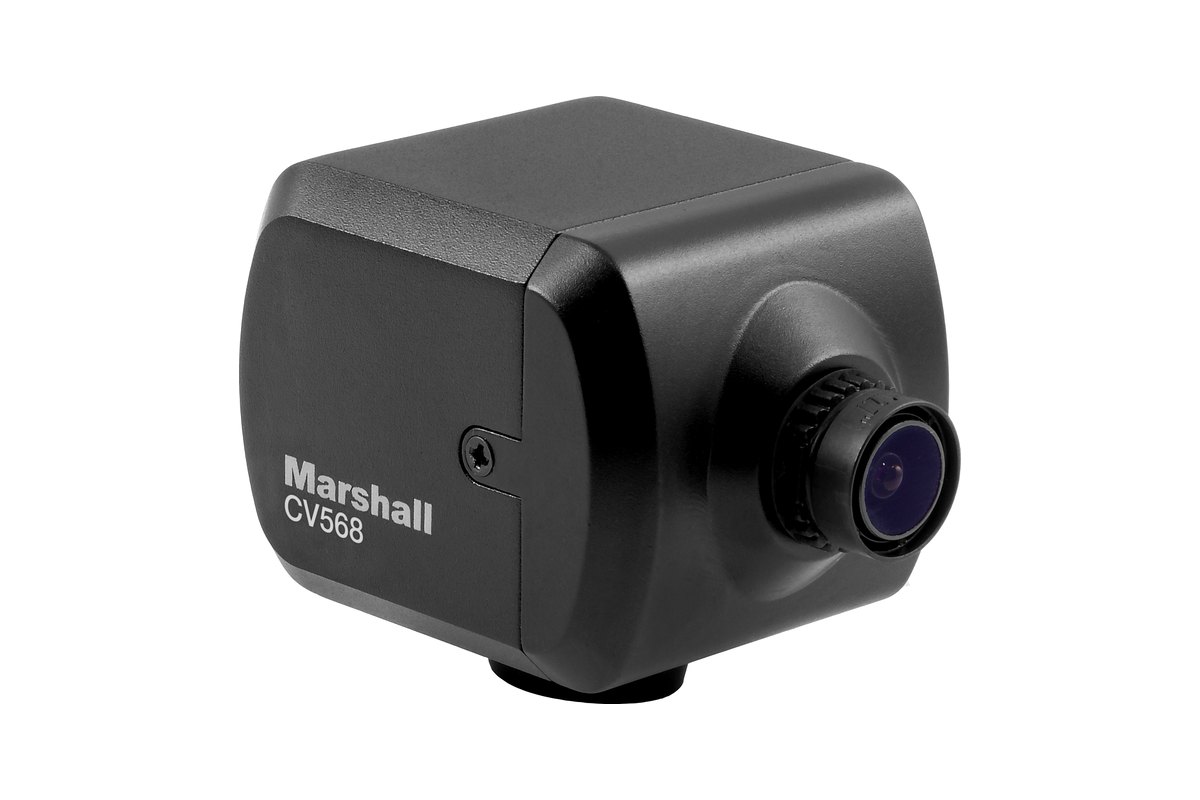

CV568
A global shutter for fast motion, genlock, and 3G-SDI and HDMI at the same time, for switched multicamera SDI.
micro · 3G-SDI

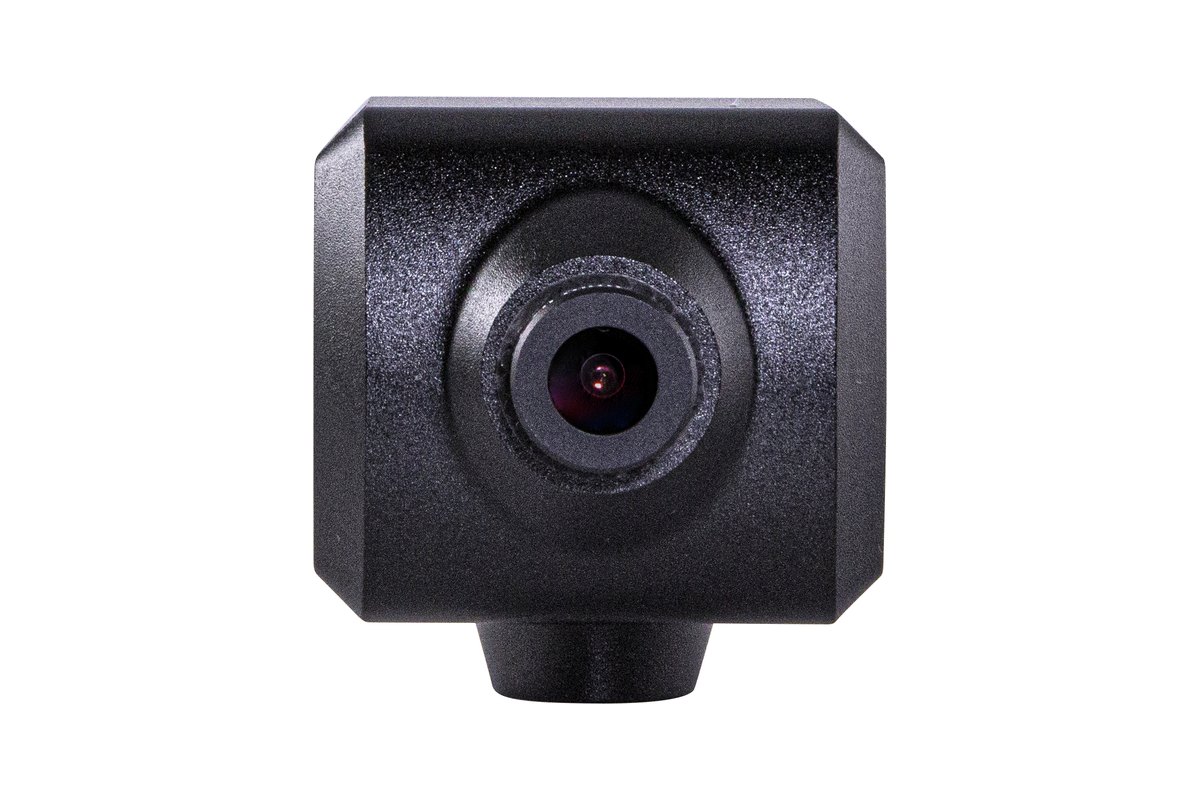

CV504
A small 3G-SDI camera for straightforward SDI positions, with a locking breakout for control, audio and power.
IP67 lipstick

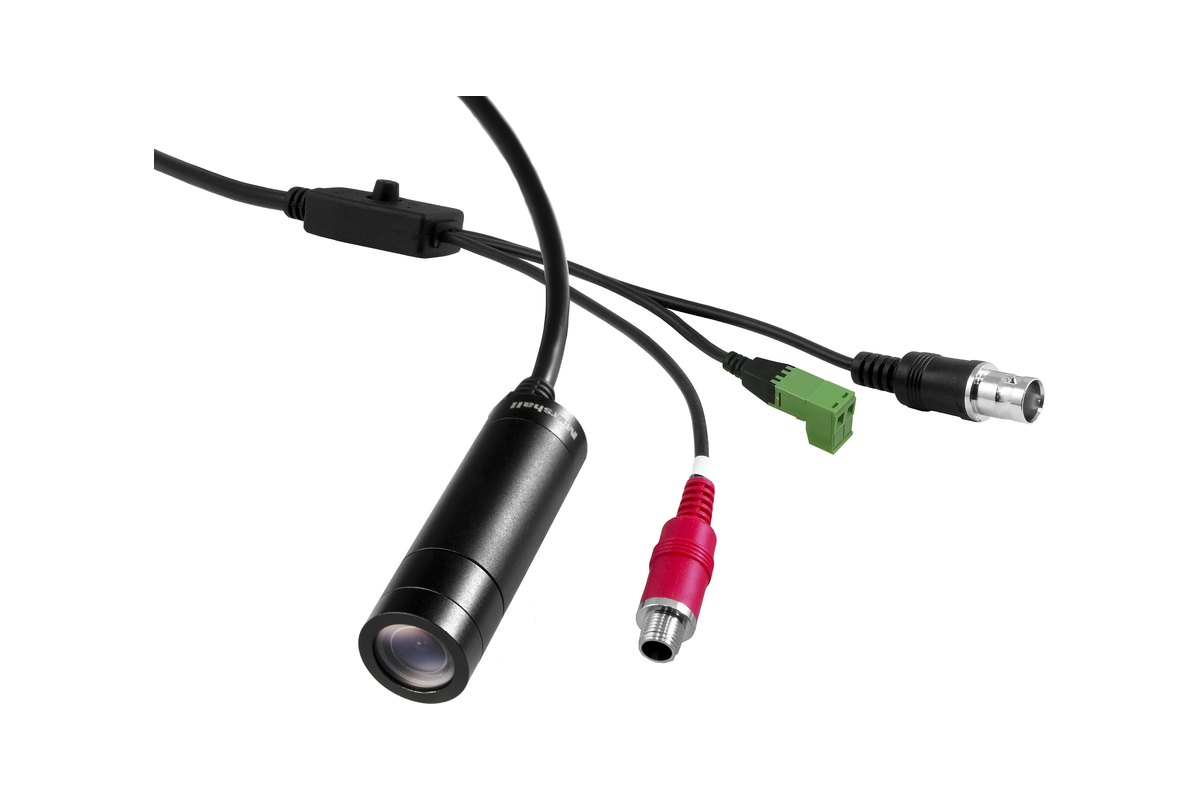

CV228
A 19.5 mm weatherproof lipstick camera on a 10-foot breakout with 3G-SDI, for outdoor, wet or very tight spots.
// PTZ cameras
Robotic cameras, with or without tracking.
The CV625 and CV612 track and frame presenters on their own; the CV620 is a conventional PTZ run from a controller. Network video differs too: NDI on the CV625-TBN and TWN, Dante AV-H on the CV625-TB and TW and on the CV612.
25x · UHD60 · tracking

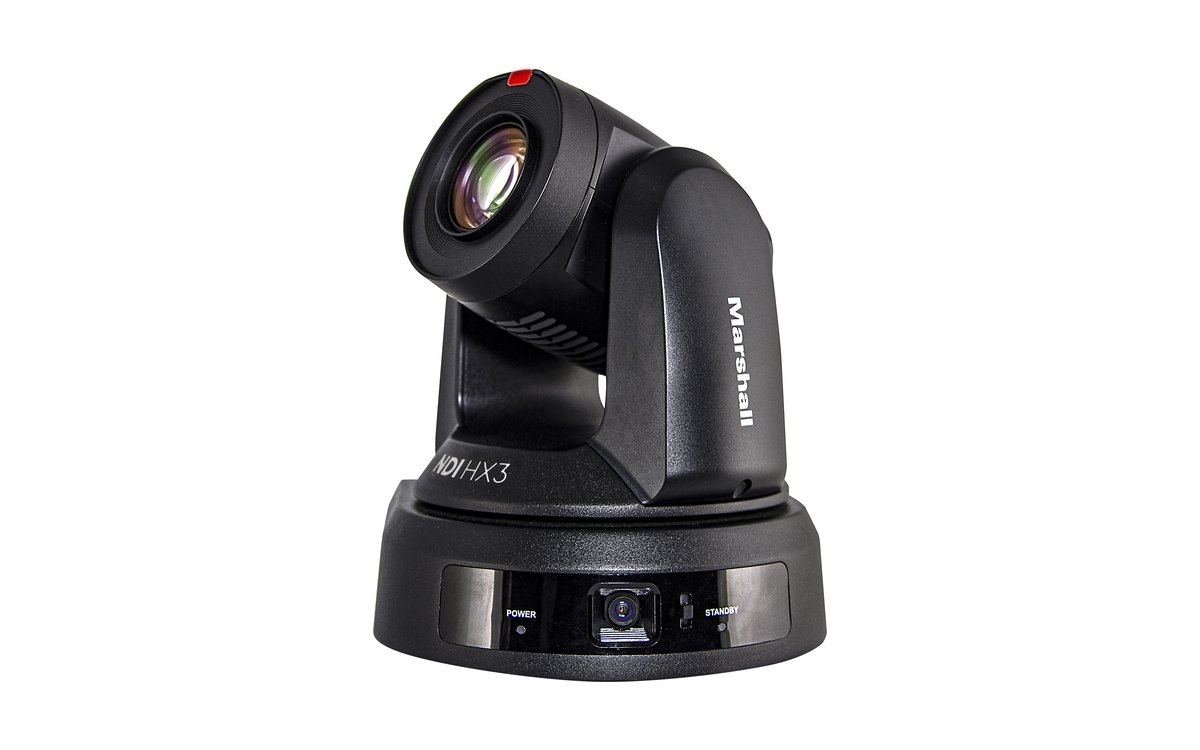

CV625
A 25x 4K60 PTZ with a second fixed wide camera in the base for a panoramic view or picture-in-picture, and auto-tracking by face. 4K leaves over HDMI and IP; SDI is 1080p.
12x · 1080p · tracking

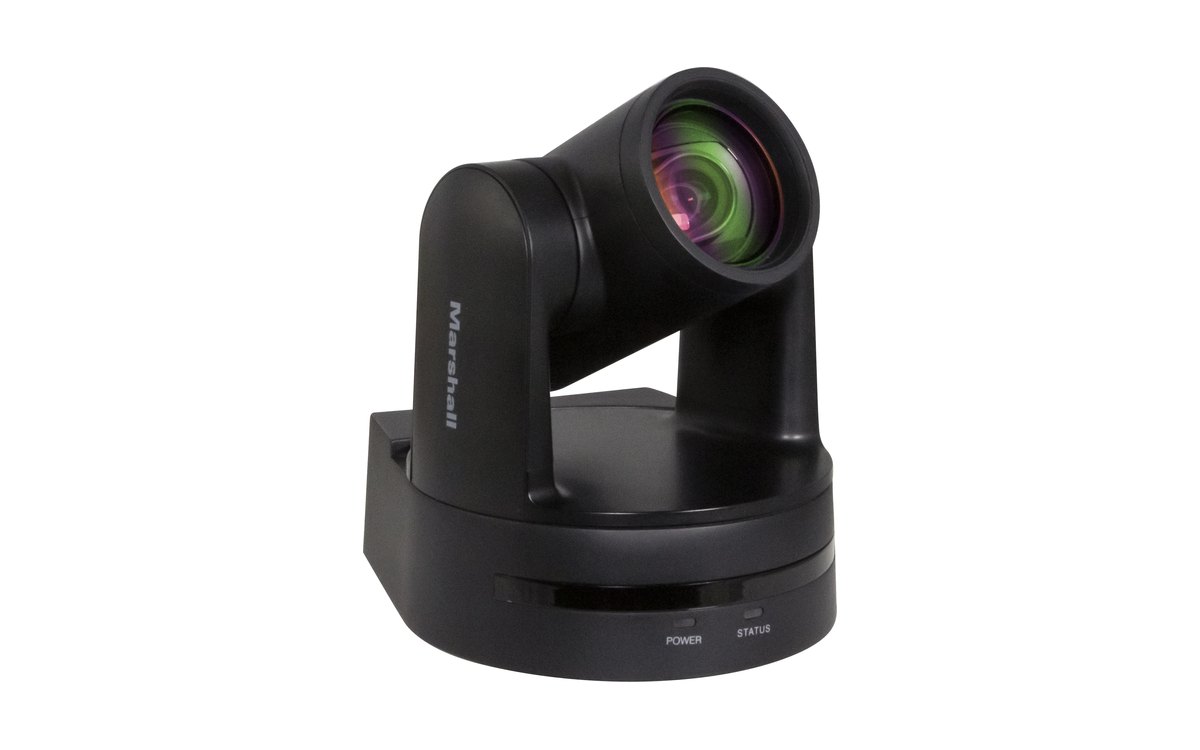

CV612
Presenter and zone tracking up to 8 m, 3G-SDI, HDMI, USB and IP, and Dante AV-H at 1080p once it is activated in Dante Controller.
20x · 1080p60

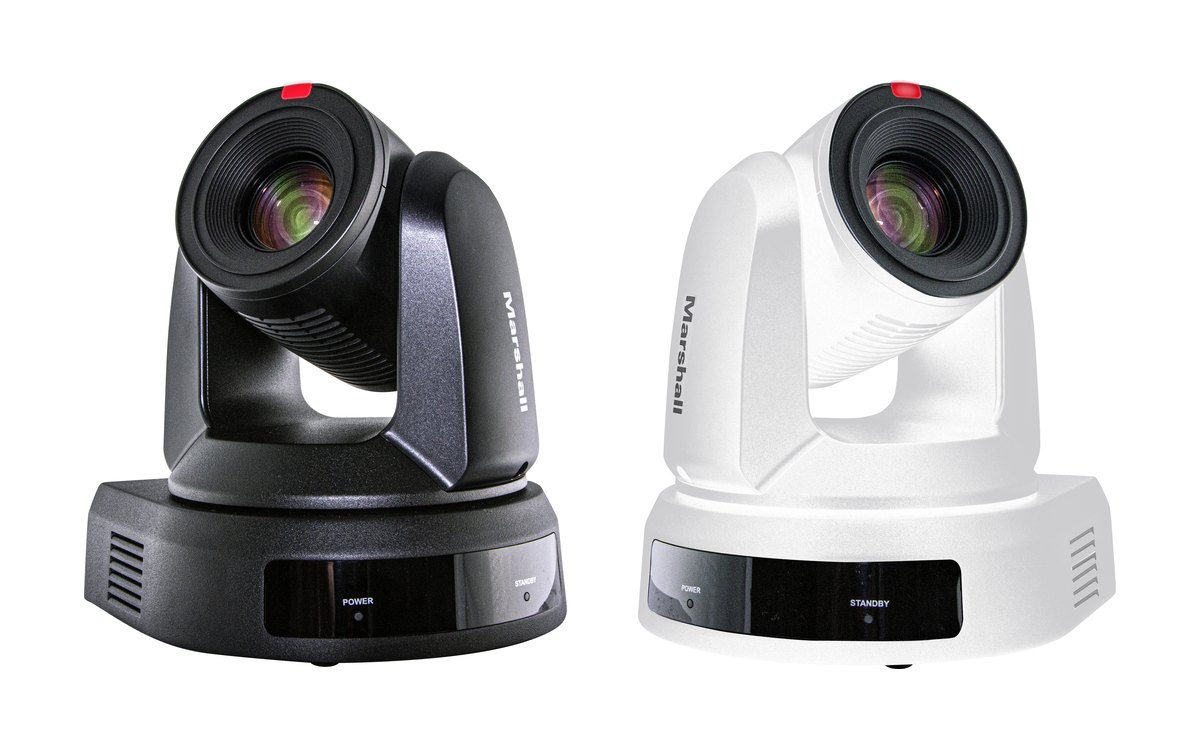

CV620-BI2 and CV620-WI2
A 20x Full HD PTZ with 3G-SDI, HDMI, USB and IP streaming including SRT, for general production and worship coverage.
For classrooms and conference rooms, the CV605-U3 is a 5x wide-angle PTZ with USB-C, HDMI and IP outputs, and IP video, control and power on one PoE cable.
// control
Drive the PTZs, match the miniatures.

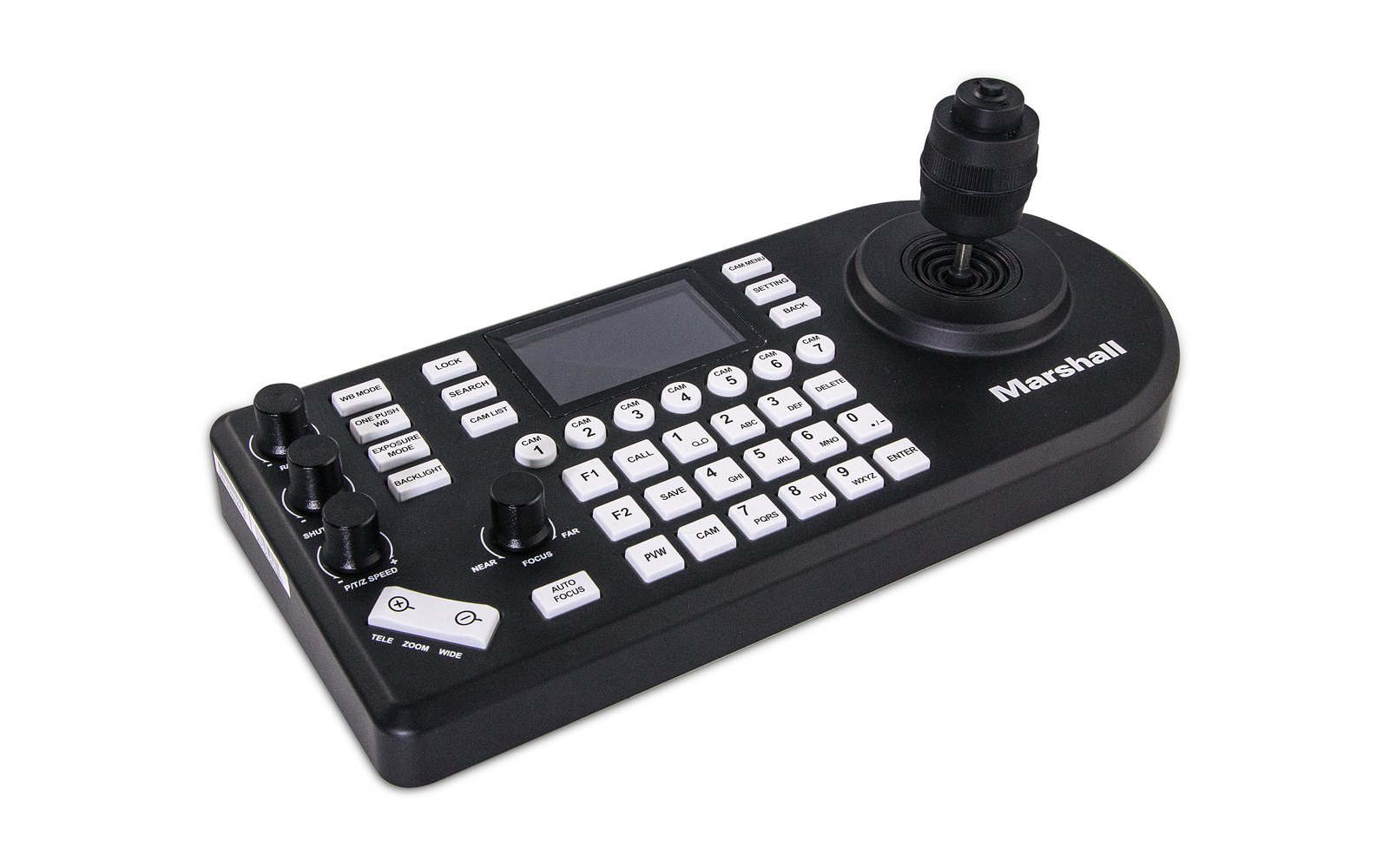

The VS-PTC-300 joystick controls cameras over IP, NDI and serial at the same time, finds IP and NDI cameras on the network, and previews them on a 3-inch screen. It is Marshall’s matching controller for the CV625, CV620 and CV605-U3.
The RCP-PLUS is a touchscreen panel for adjusting and matching miniature and zoom cameras from the control room: up to seven over RS485 on ordinary XLR cable, or up to 63 over IP, with 70 in total.
