The right camera chain, from lens to shading.
Studio and system cameras, camcorders, ENG and cinema cameras, specified as a chain with the lenses, control and shading that let them cut together on air.
The live chain: bodies, control, and the cable that carries it all.
Multi-camera chains with CCUs, matched and shaded so four cameras look like one show.
The control layer that makes matching possible, and the part a camera-only budget leaves out.
Long runs, one cable: power, video, and control over SMPTE fiber.
Studio cameras and shading
Cameras an operator carries, and cameras nobody stands behind.
Shoulder and handheld packages built for news, sports, and run-and-gun work.

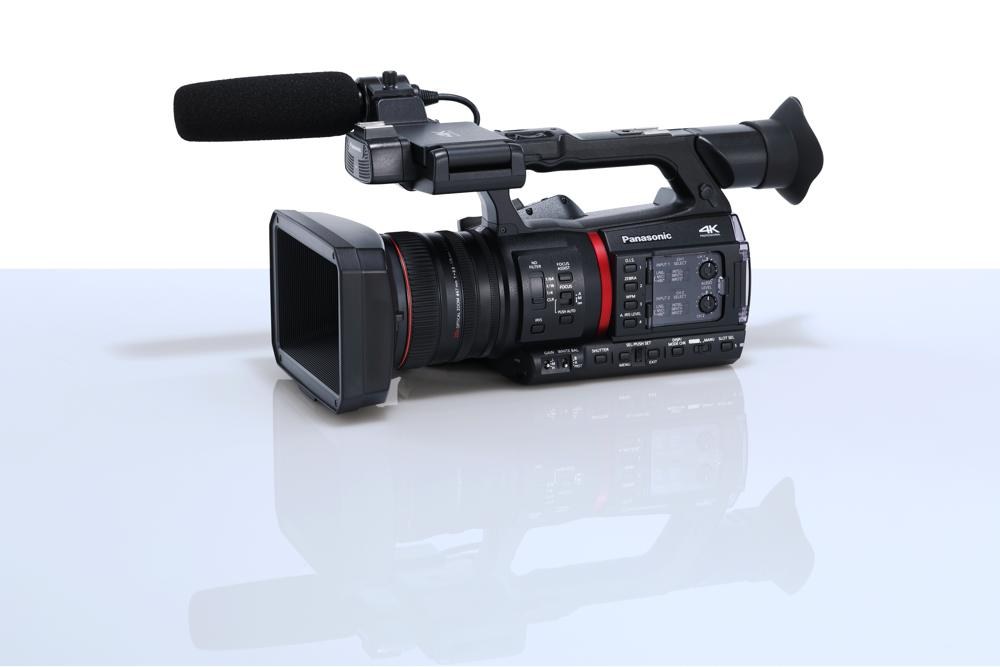

One-piece cameras with a built-in zoom, XLR audio and SDI, for the everyday shoot.
Small cameras in places crews can't stand, cut into the show like any other source.
Camcorders and POV cameras
The choices that give a production its character.
Large-sensor cameras for a shallower, more cinematic picture, specified with the lenses and support they need.
Glass chosen for your sensor, your room, and your shots.
Tripods, pedestals, and mounts rated for what sits on them.
Studio or cinema camera: the practical differences
| Consideration | Studio and system cameras | Cinema cameras |
|---|---|---|

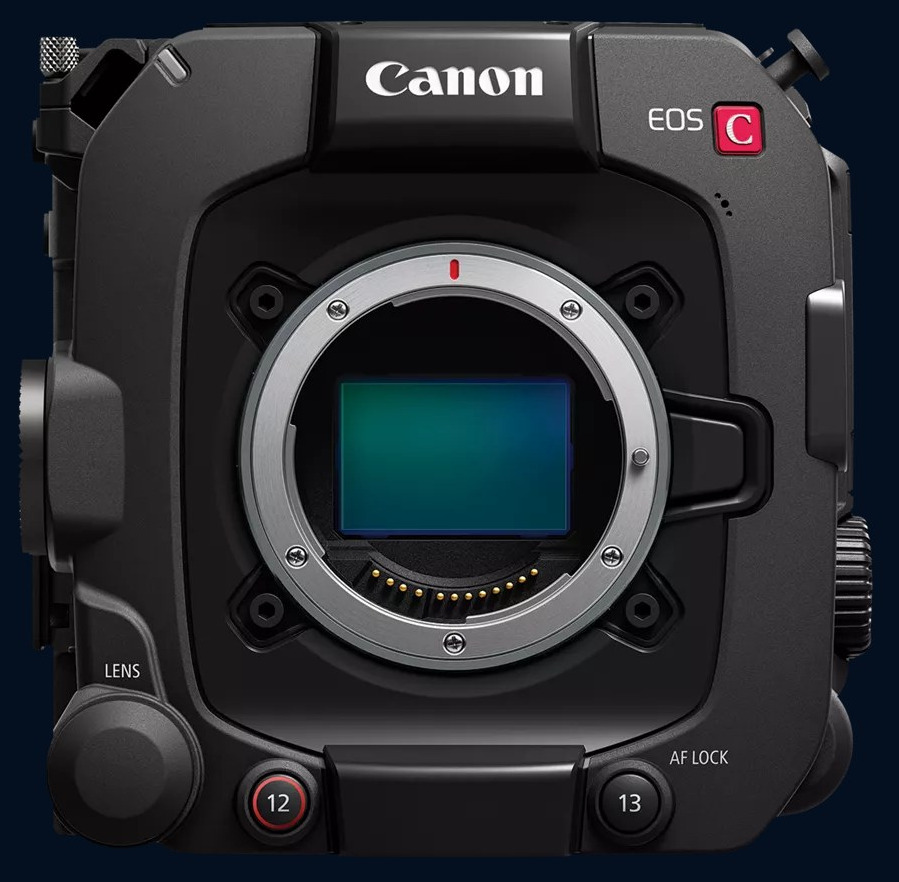

| Control during the show | Iris, black level and color shaded remotely from a CCU or remote panel while the show runs | Often set on the camera; some models, such as the EOS C400, can also be run from a Canon RC-IP controller |
| Sync with the switcher | Genlock, return video, tally and talkback carried through the camera chain | Model by model: the EOS C400 takes genlock and return video; the FX6 has timecode but no genlock, so the switcher frame-syncs it |
| Lenses | Broadcast zooms, portable or box, with zoom and focus at the operator's hands | Interchangeable lenses chosen for the look; live zoom and focus control depends on the lens and its accessories |
| Support | Pedestals and heavy heads sized to a box lens and viewfinder | Tripods, gimbals or robotic heads sized to the body and lens together |
Many rooms use both: a cinema camera for a shallow-focus angle beside matched system cameras. We check control, sync and lens options model by model before you buy.
Cinema bodies and broadcast lenses
A camera chain for The Stephen A. Smith Show.
Straight Shooter Media, Jersey City: Panasonic studio cameras into TriCaster 2 Elite switching. Varto designed, integrated and commissioned the camera systems and both control rooms, and trained the staff who ran them.
What camera buyers ask.
Q·01Can new cameras match the ones we already own?
Usually, with the right chain. Matching is shading, color science, and control, and it's the work we do at commissioning. We'll tell you when a mix can't be made to sit together.
Q·02Can we build the chain in stages?
Yes. Camera first, CCU and shading next, fiber when the runs demand it. We design the end state so each stage plugs into the last instead of replacing it.
Q·03What does a multi-camera studio package cost?
The camera body is rarely the biggest line. CCUs, shading, glass, support, and the wiring between them set the real number, and skipping them is how packages disappoint on air. We'll spec the whole chain against your budget and tell you plainly what to defer and what not to.
Q·04Do we need 4K now, or is HD still defensible?
HD is still doing daily work in plenty of rooms, and a 4K-ready chain can shoot HD until the day you flip. What matters is not buying gear that closes the door. We design the path so that, on a chain specced for it, the upgrade is a settings change and a license, not a forklift.
Q·05Can cameras run over the network instead of new cabling?
Increasingly, yes. Network-native cameras carry video, control, and often power over cabling a building may already have, and they coexist with traditional runs. Whether that fits your plant is a design question, and it's one we answer before anything is quoted.
The right equipment, chosen with you.
Already know what you need? Get a quote on any of it Browse brands
plus JVC · Marshall · AJA · SKAARHOJ camera controllers, and other lines on request
