Production systems for broadcast.
Switching, cameras, graphics, routing and contribution for stations, studios and production companies. Varto designs, supplies and commissions the plant, trains the people who run it and supports it after handover.
Rooms, trucks, studios and shows on the record.
Two switching paths, running at once.
Three live draws a day, in public and under regulation. Varto built the draw studio to run primary and backup switching in parallel, with Flowics graphics and Dante audio on a Yamaha DM3.

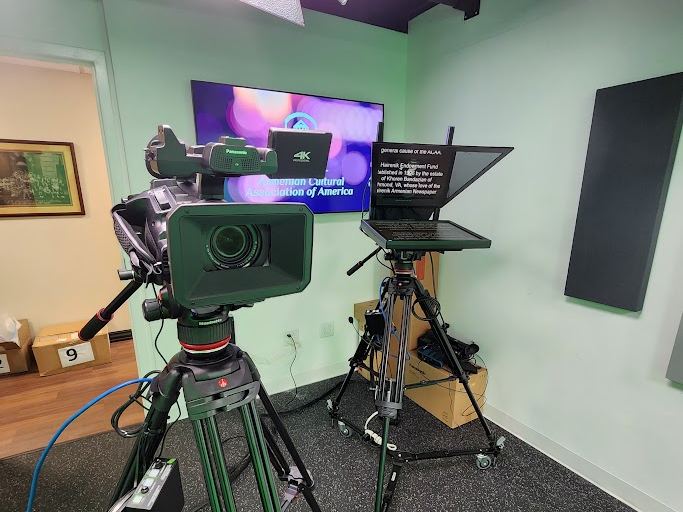

Camera systems and both control rooms.
A Panasonic camera chain, TriCaster 2 Elite switching, CueScript prompting and SNS EVO shared storage. Varto designed, integrated and commissioned the camera systems and both control rooms, and trained the staff who ran them.
A production system, installed in 2022.
A TriCaster TC1 with two TalkShow units bringing remote callers in as sources. Separately from the installation, Varto also ran productions for the Post.
The production platform comes first.
It decides how much of the control room lives in one system, and how the rest connects to it.
Choose it when
Studio chain, matched PTZ or a camcorder on the shoulder.
A plant can run all three; each position is chosen by who operates it.
Studio camera chain
- Who runs it
- An operator on the floor, and a shader matching the cameras from a remote panel.
- Lens
- By model: B4 zooms and box lenses on the AK-UCX100 and URSA Broadcast G2; Micro Four Thirds lenses on the Studio Camera 4K Pro G2.

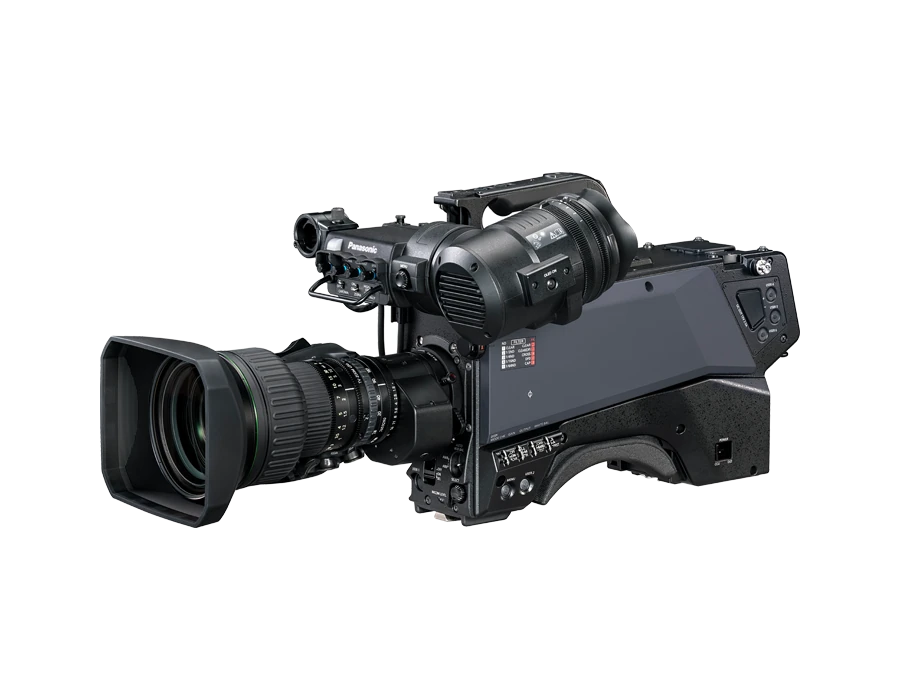

- Panasonic AK-UCX100: 4K, HLG and SDR at once, with or without a CCU.
- Blackmagic URSA Broadcast G2: a B4 mount and a SMPTE fiber option.
- Blackmagic Studio Camera 4K Pro G2: a Micro Four Thirds mount; tally, talkback and control from an ATEM over its return feed.
Matched PTZ fleet
- Who runs it
- One operator for several cameras, recalling stored shots.
- Lens
- Built-in 15x to 20x zooms; E-mount lenses on the Sony ILME-FR7.

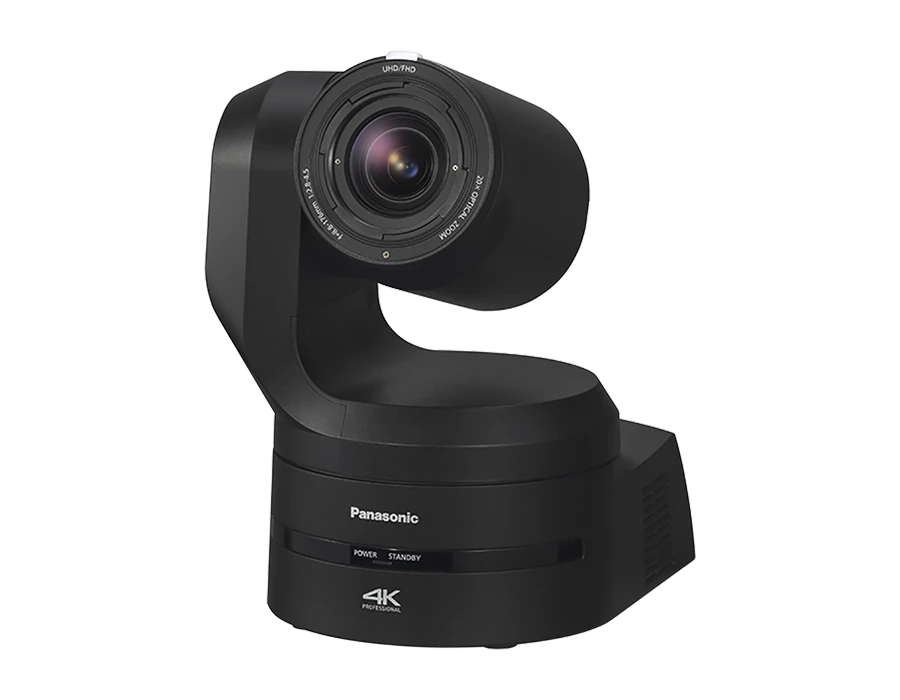

- Panasonic AW-UE160: one-inch 4K/60p with 12G-SDI, fiber, NDI and SRT.
- Panasonic AW-UE150A: an optical low-pass filter for LED walls and built-in auto tracking.
- Canon CR-N700: genlock, and color matching to other cameras.
- Sony BRC-AM7 and ILME-FR7: larger sensors, to sit beside studio cameras.
ENG camcorder
- Who runs it
- One operator per camera, wherever the story is.
- Lens
- A built-in zoom covers wide to tight.

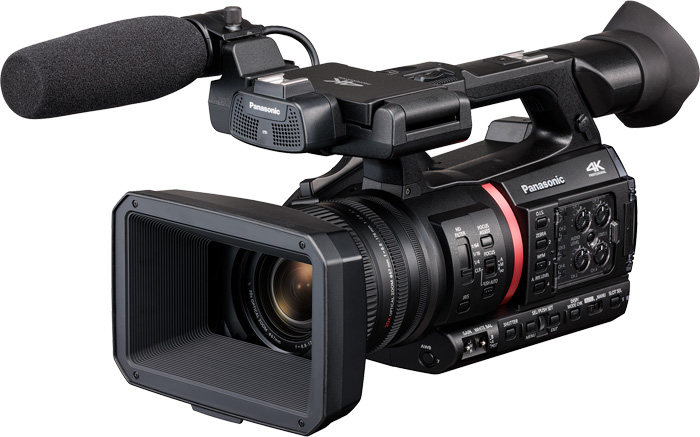

- Panasonic AG-CX370: NDI HX2, SRT, genlock and switcher tally.
- Canon XF605: SRT streaming and two XLR inputs.
- Sony PXW-Z300: 12G-SDI and HDMI.

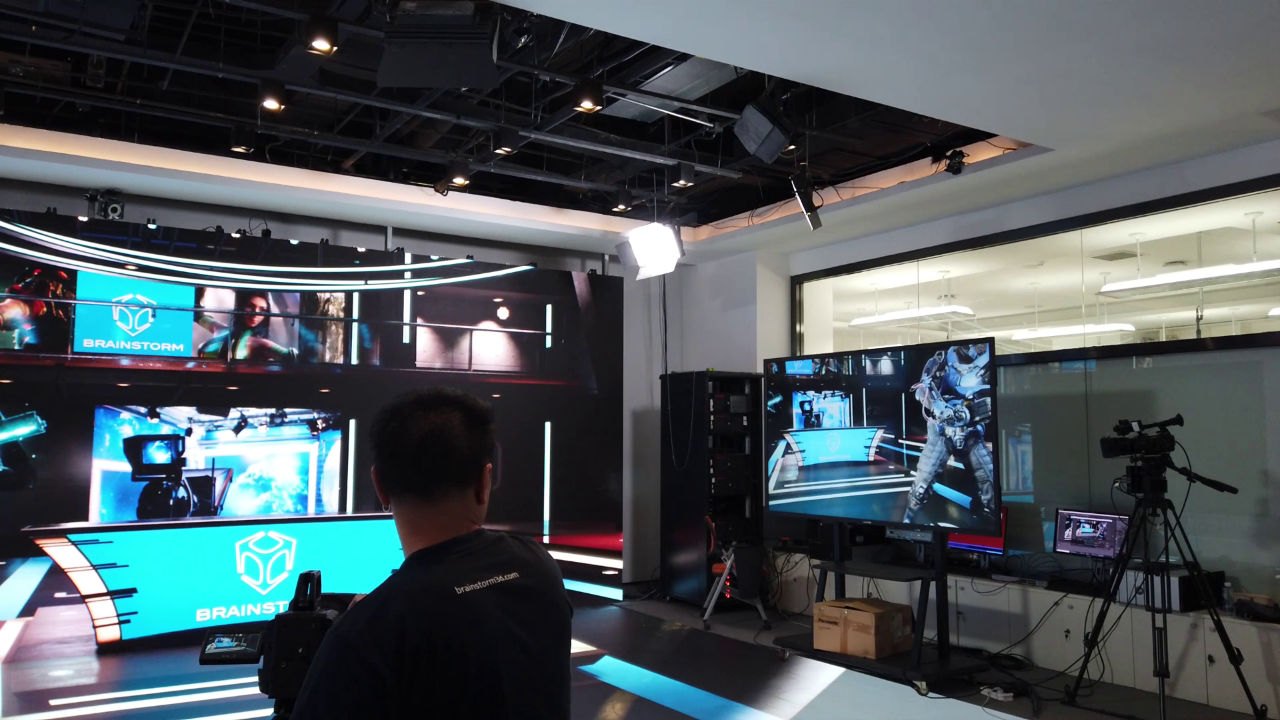

The studio, designed by Varto.

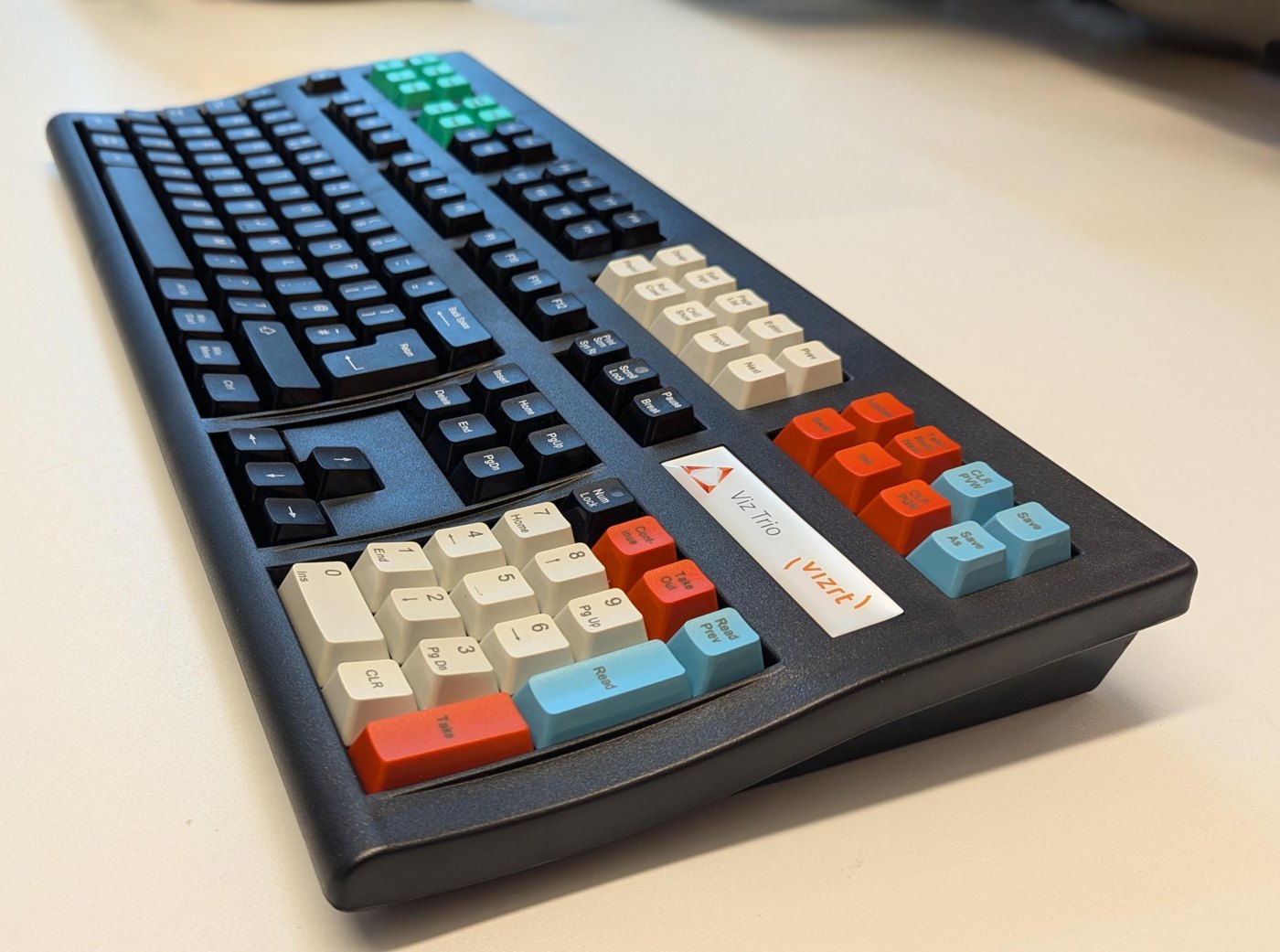

Graphics for the operator you have, replay with its own operator.
Chosen by who runs them and what they have to drive.
By the operator
Routing, audio, comms, storage and the network underneath.
Designed, supplied and commissioned with the rest of the system, down to the labeled tie lines.

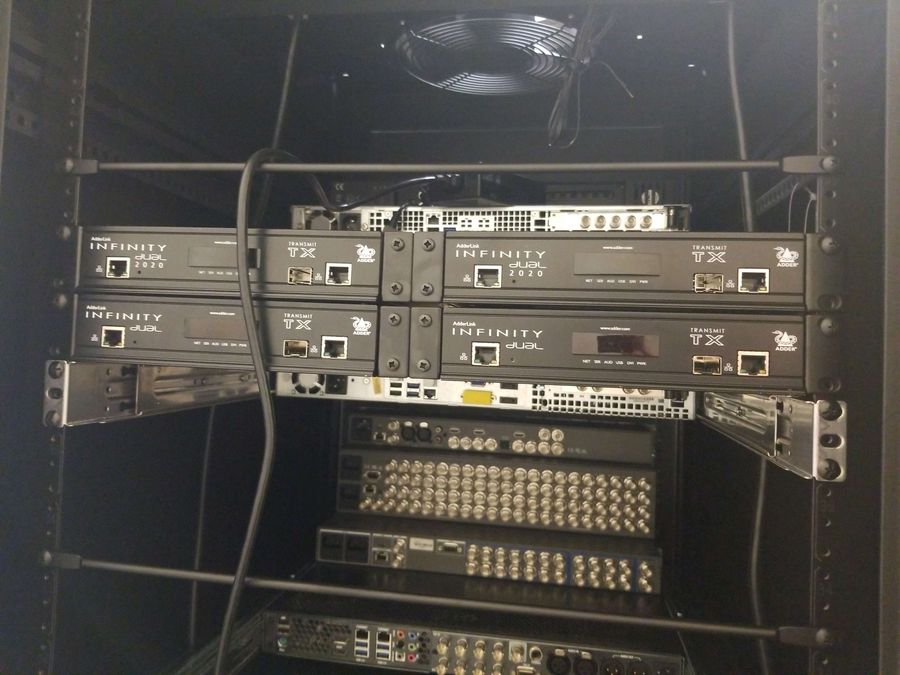

KVM transmitters and patch panels in Varto's rack room, cabled and dressed.
- Routing and fiberRoss Video UltrixAJA KUMO and FiDO
- Audio and intercomYamaha DM7Clear-Com Arcadia and FreeSpeak
- Storage and KVMSNS EVOADDERLink INFINITY
- Network, racks and powerNETGEAR M4350 and M4250Middle Atlantic
An existing production truck that Varto upgraded, integrated and commissioned: SMPTE fiber, an ATEM Constellation switcher and Clear-Com throughout.
From the venue to master control, and out to the audience.
The field unit is one part; the data, the receive side and the return path are the rest.
LiveU field units and a receive server at Varto.
- In the fieldLiveU LU300S for one camera, LU800 for up to four frame-synced cameras by license, LU900Q for the harshest networks.
- In the truck or the rackLiveU LU810 or LU610S.
- At base and in the cloudLU2000 or LU4000 receivers or a cloud channel, with LiveU Studio and Central in the browser.
- Back to the fieldIFB, return video and tally over the same link.
- Guests, encoding and playoutQuickLink StudioEdgeTeradek Prism FlexCablecast VIO
LiveU units ship from LiveU configured to your account; Varto plans the receive side with you, adds its own staging where a deployment needs it, supplies rentals from LiveU's pool with data included, and can staff the link. Varto is a LiveU Authorized Partner. LiveU systems · LiveU rentals
Upgrading a plant that is already on air.
Each move is planned around your production schedule, and rental equipment can hold a room during the change, subject to fleet availability.
- Ross Carbonite Black, Black Plus or Mosaic moves to Carbonite Ultra, Ultra 60 or Ultrix Carbonite. Ross ended production on April 1, 2023, and supports them for seven years from that date.
- An older TriCaster or 3Play moves to TriCaster Prizm or Vizion, or 3Play Vivid. Vizrt offers trade-in credit on eligible systems; paths by model are on the TriCaster page.
- Panasonic AW-UE150 moves to AW-UE150A, its successor. Adds an optical low-pass filter for LED walls, NDI High Bandwidth and built-in auto tracking.
- LiveU LU600 or older moves to LU800, LU900Q or LU300S; LU810 or LU610S in the rack. Trade-in confirmed case by case, together with the receive side.
- An SDI plant moves to Hybrid NDI, or SMPTE ST 2110. SDI where it works, NDI where flexibility matters, ST 2110 where scale justifies it.

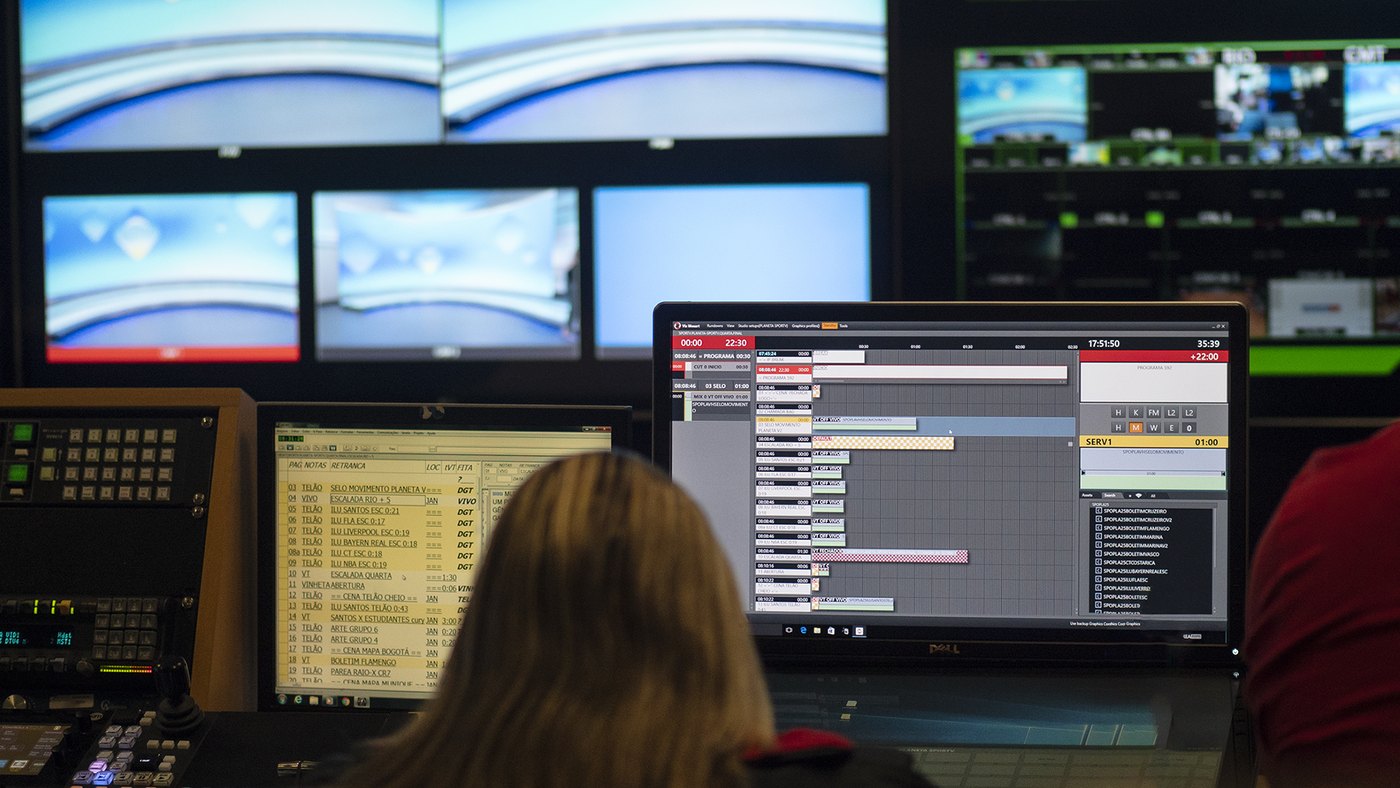

- A show run by hand from a rundown moves to Viz Mosart automation. Each switcher, console and robotic camera is checked against Vizrt's driver list.
Varto rental systems and operators on site.
Support, training, repair and rentals.
See it working first
Book a demonstration at our East Rutherford studio before you commit. We confirm which systems can be shown before your visit.
Support
Support for an on-air schedule: per-incident help, a Varto OnAir plan for the systems that run on a schedule, or Professional Services Blocks for planned changes. Coverage is confirmed for your equipment and workflow.
Repair
Eligible Vizrt hardware, TriCaster and 3Play included, is repaired on Varto's own bench, a Vizrt Authorized Repair Center.
Bring us the room, the truck or the upgrade.
Tell us what you run now and what has to change. Drawings and equipment lists can wait for the first conversation.
