Middle Atlantic racks, power and what goes inside the rack.

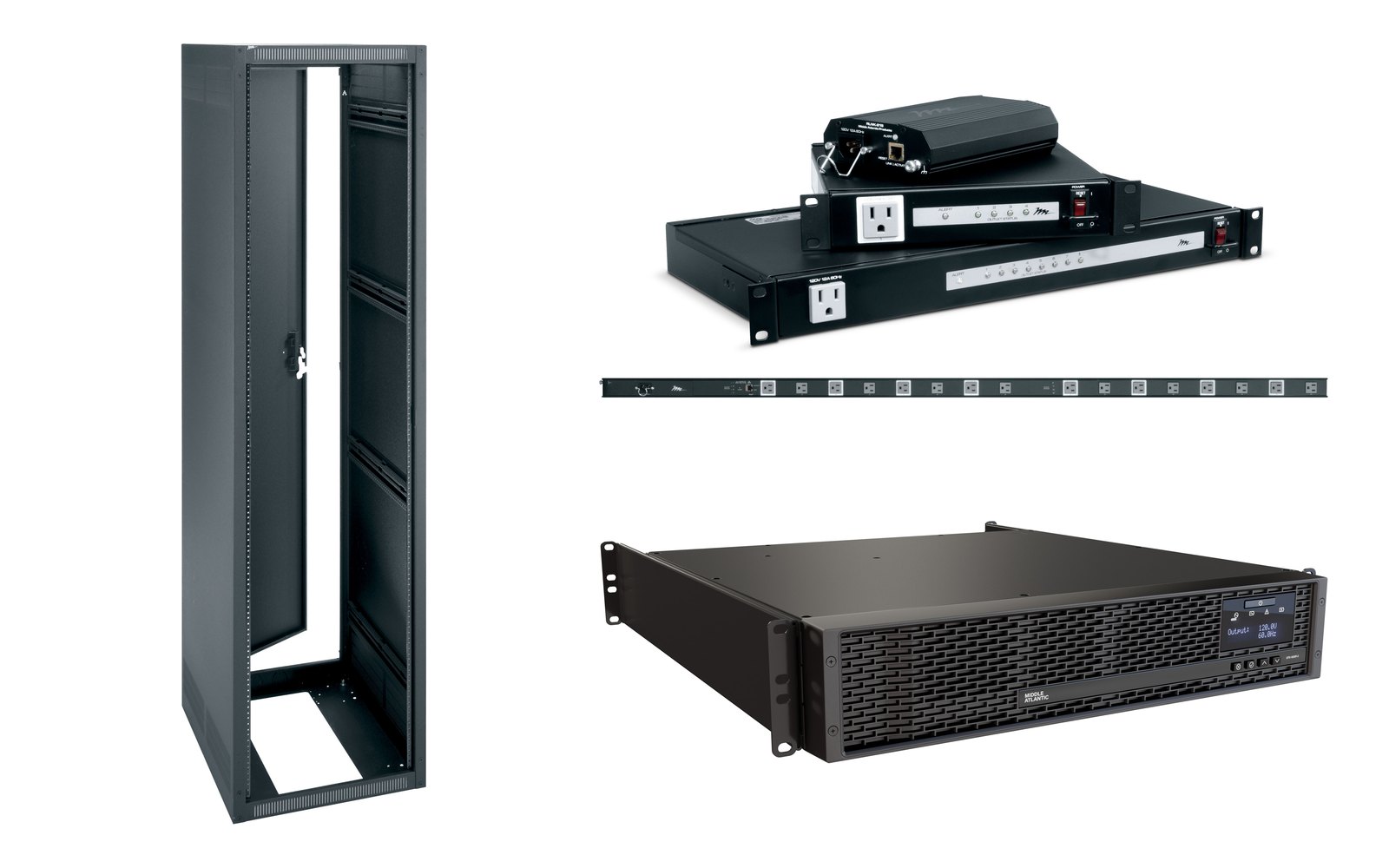

Floor, wall and portable racks, power with remote control and battery backup, and the shelves, panels and cooling that go in them. Order them by part number, or have Varto build them into a system.
Prefer to talk? (888) 656-6233
// racks
Floor, wall and rolling racks.
23 in wide · floor

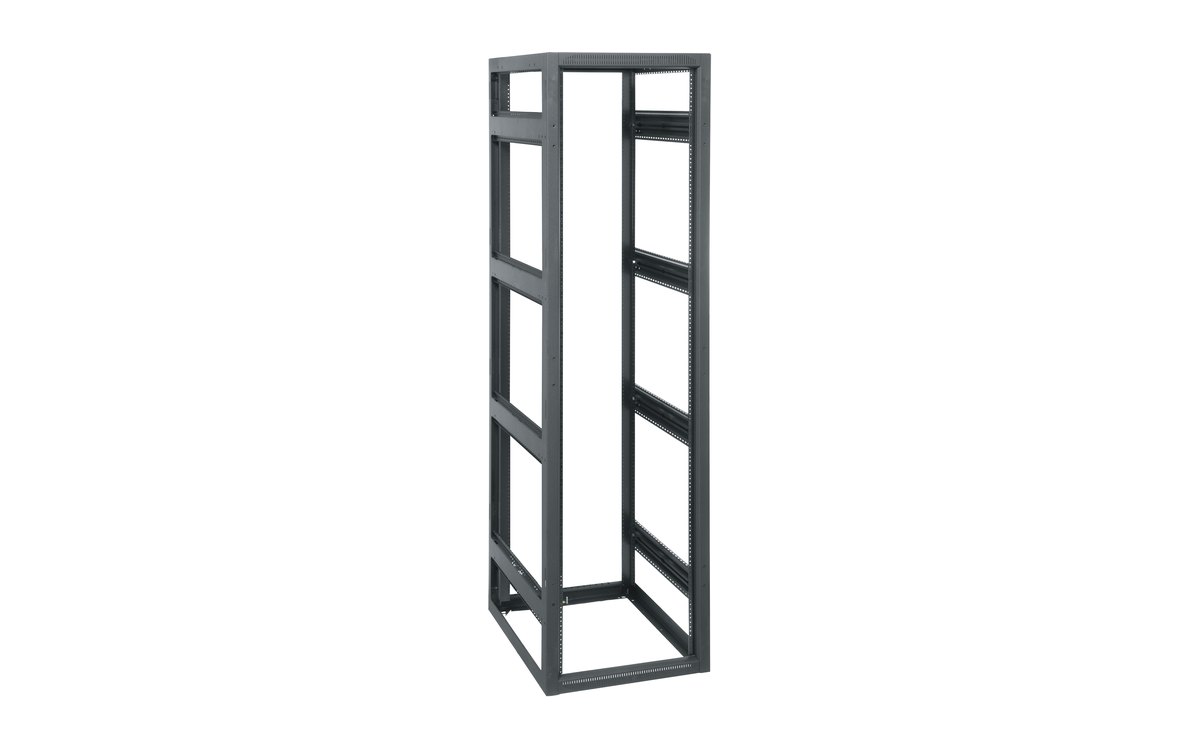

BGR Series
A gangable AV rack that accepts both Forward and Lever Lock accessories, for more mounting on and off the rail. Sold as a frame or pre-configured for Pro AV.
22 in wide · broadcast

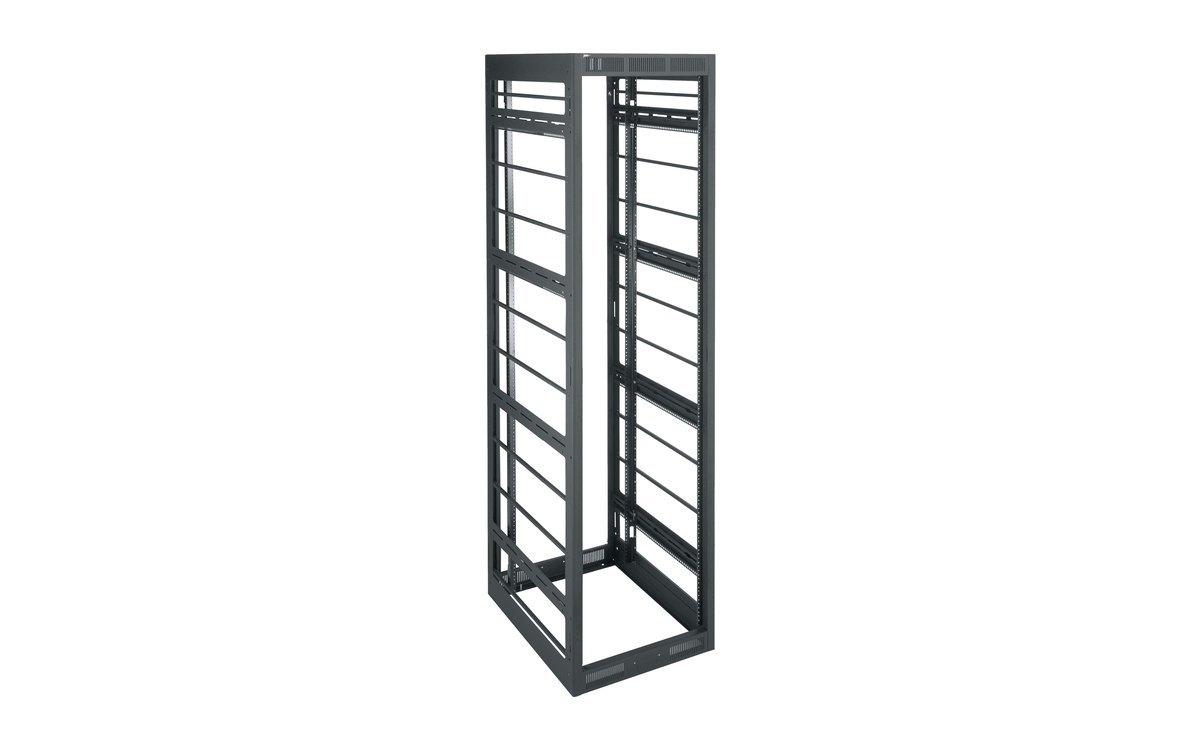

VRK Series
Built for video and AV equipment, with horizontal lacing bars on 7 in centers so cable can be tied as it is run.
22 in wide · standalone

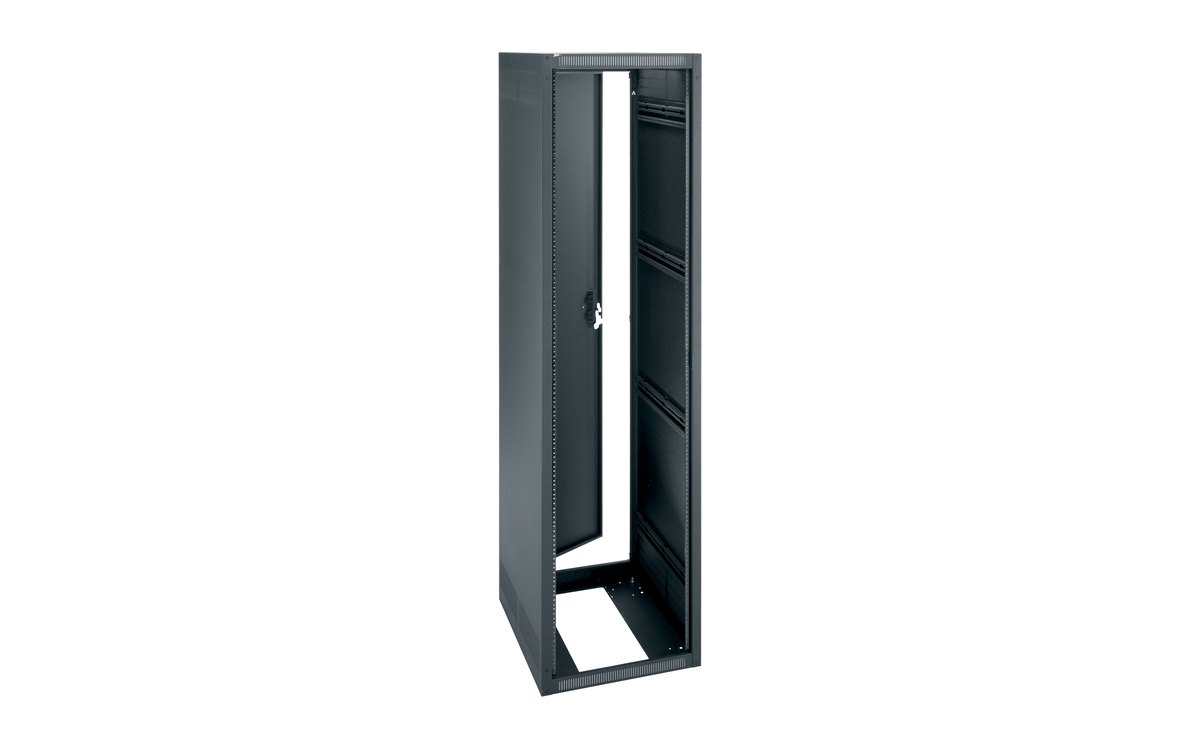

ERK Series
An economical rack with solid sides, fully welded or ready to assemble, from 10 to 44 rack spaces.
24-1/4 in wide

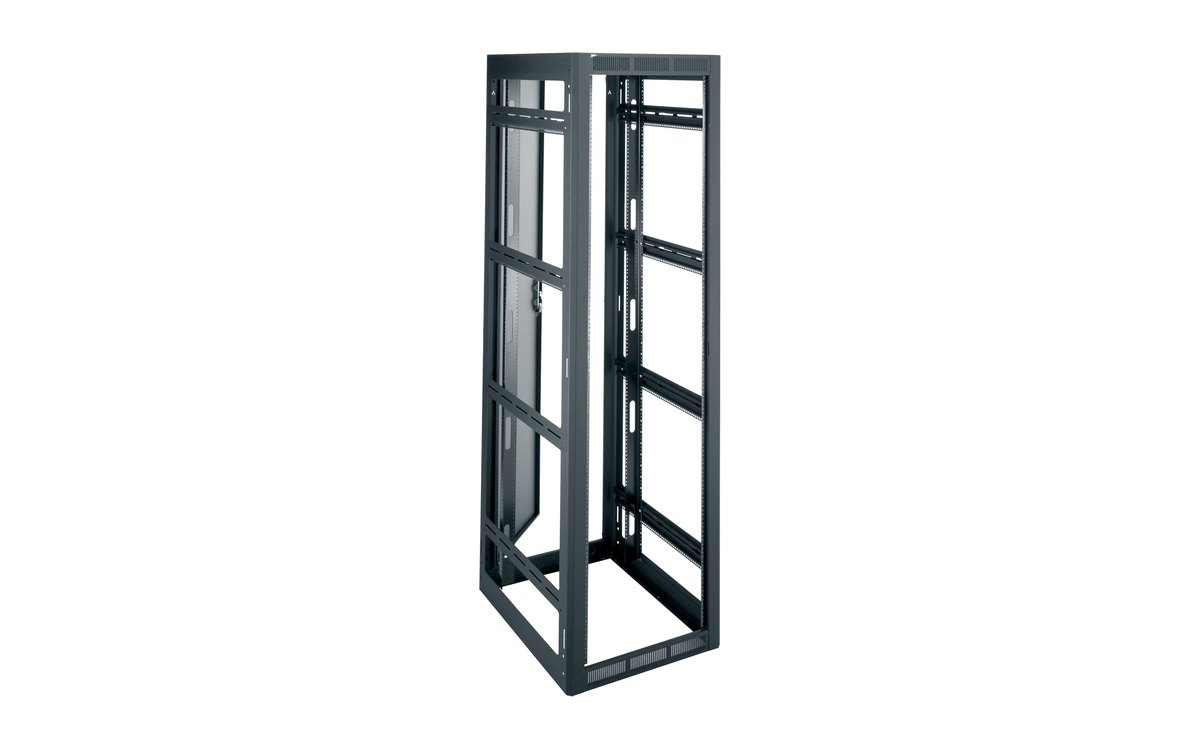

WRK Series
Extra width and rackrail pass-throughs for thick cable bundles, in bays that can be joined into a row.
wall mount · pivoting

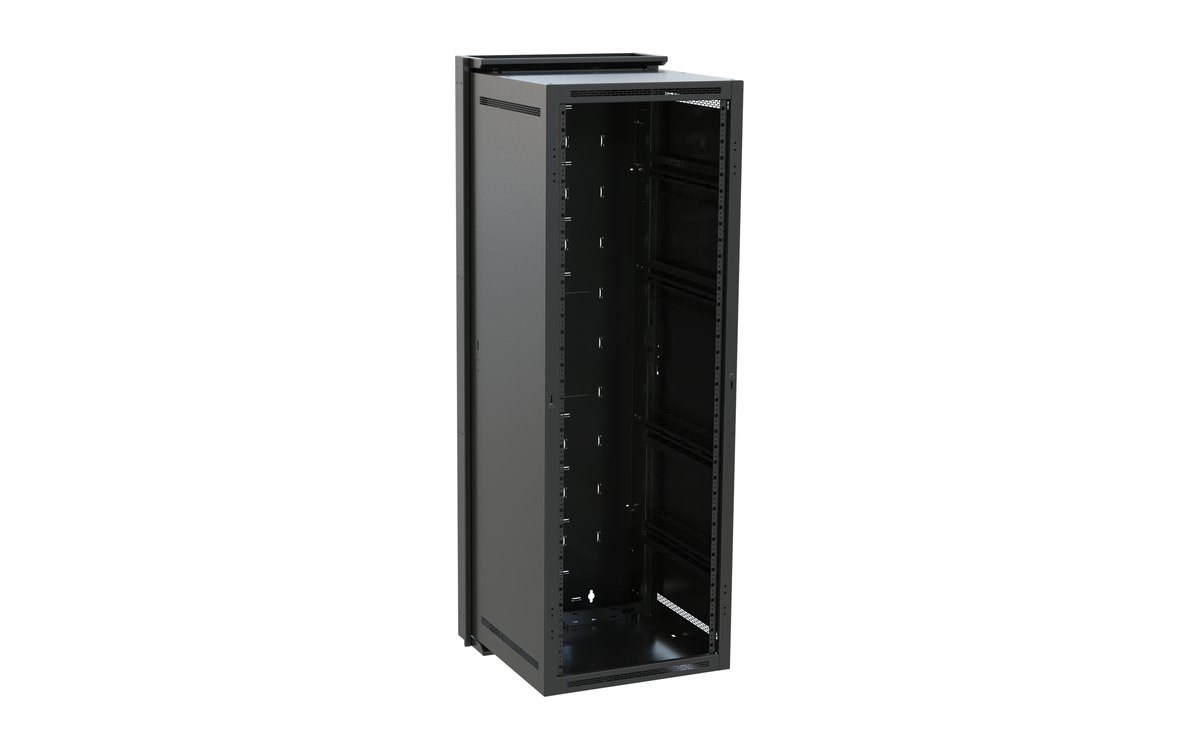

DWR Series
A sectional wall rack that pivots out for access to the rear of the equipment.
portable

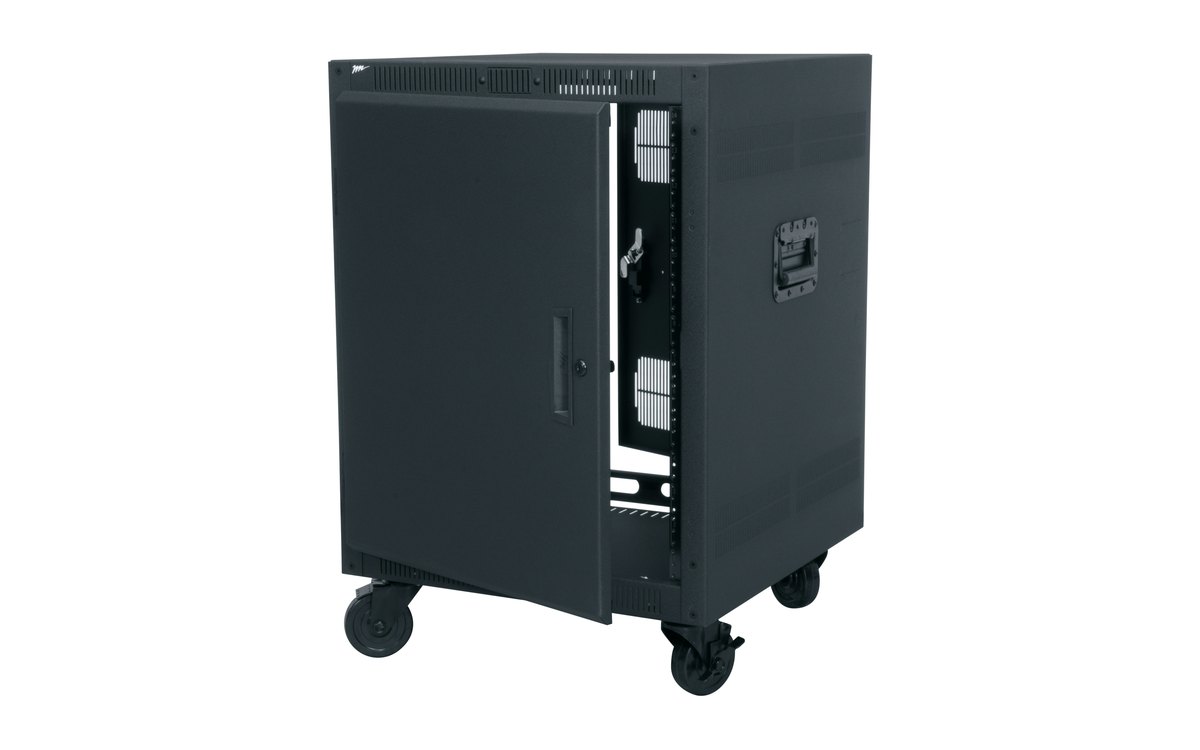

PTRK Series
A welded steel rolling rack with recessed handles, lockable doors and locking casters.
For control rooms, Middle Atlantic makes LundHalsey x-Type broadcast consoles in fixed or electric height. For millwork, SRSR racks slide out and rotate for access to the rear.
// power
Rack power, from surge protection to remote control.
Beyond protected outlets, decide whether the system needs outlets switched from across the network, a battery that rides through an outage, or equipment that powers up in order.
RackLink power is managed from a control system or from RackLink Cloud, Middle Atlantic’s free dashboard.

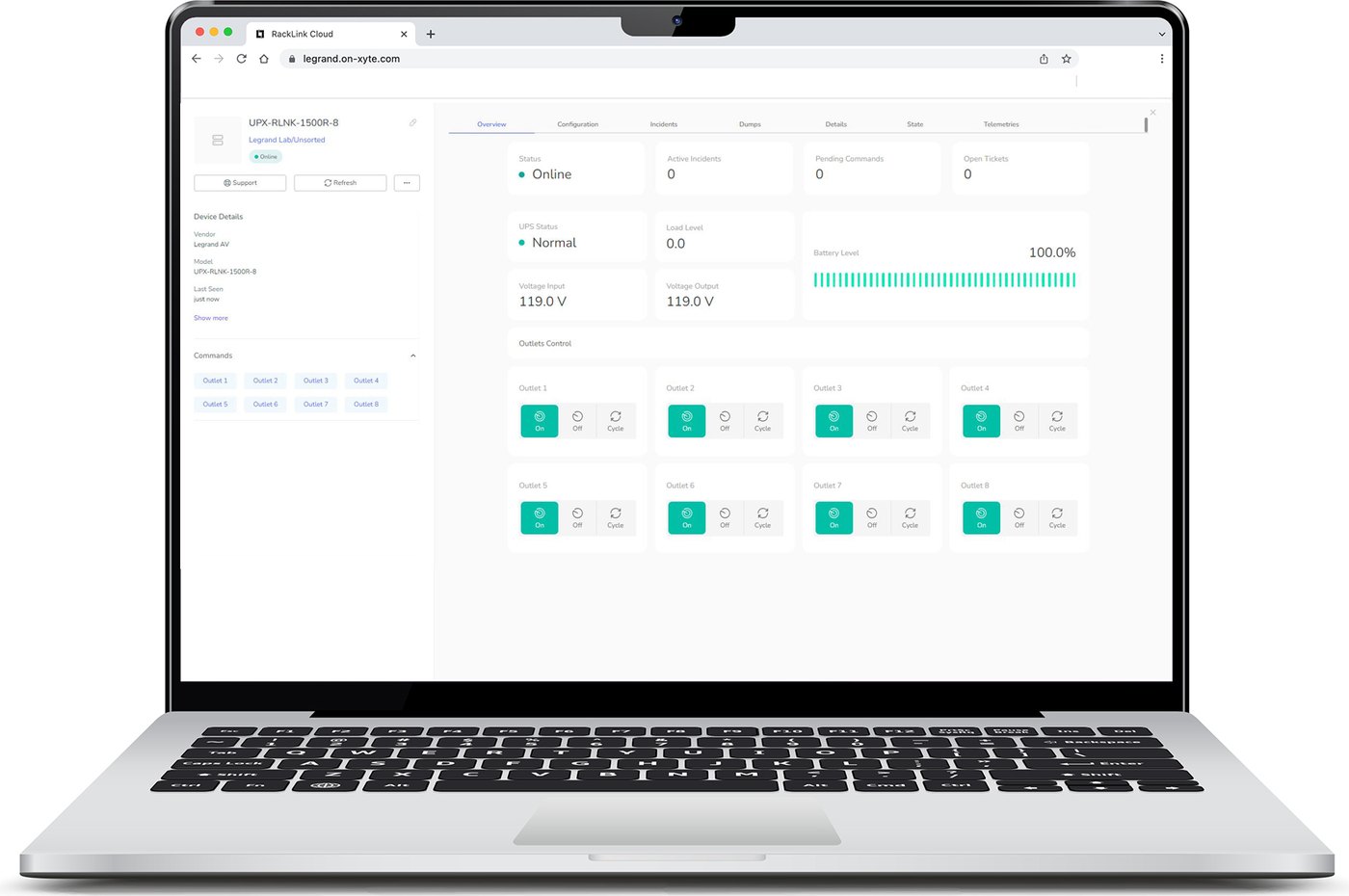

RackLink Cloud also covers NEXSYS UPS units with RLNK in the part number: status, battery level, input and output voltage, and outlet control.
Surge-protected power
Select Series units add surge protection and EMI filtering. NEXSYS rackmount PDUs add multi-stage surge and voltage protection, and can be controlled remotely by contact closure.
PDUs with RackLink
Select Series models control up to eight outlets individually over the network, with remote sequencing. Premium+ models add outlet metering and SNMP.
UPS
Select Series and NEXSYS units in one or two rack spaces. NEXSYS Online models have zero transfer time.
Sequencing
PDS Series power turns equipment on and off in steps. The USC-6R is a six-step sequencing controller triggered by contact closure; up to three join for 18 steps.
// inside the rack
Shelves, cooling and panels.

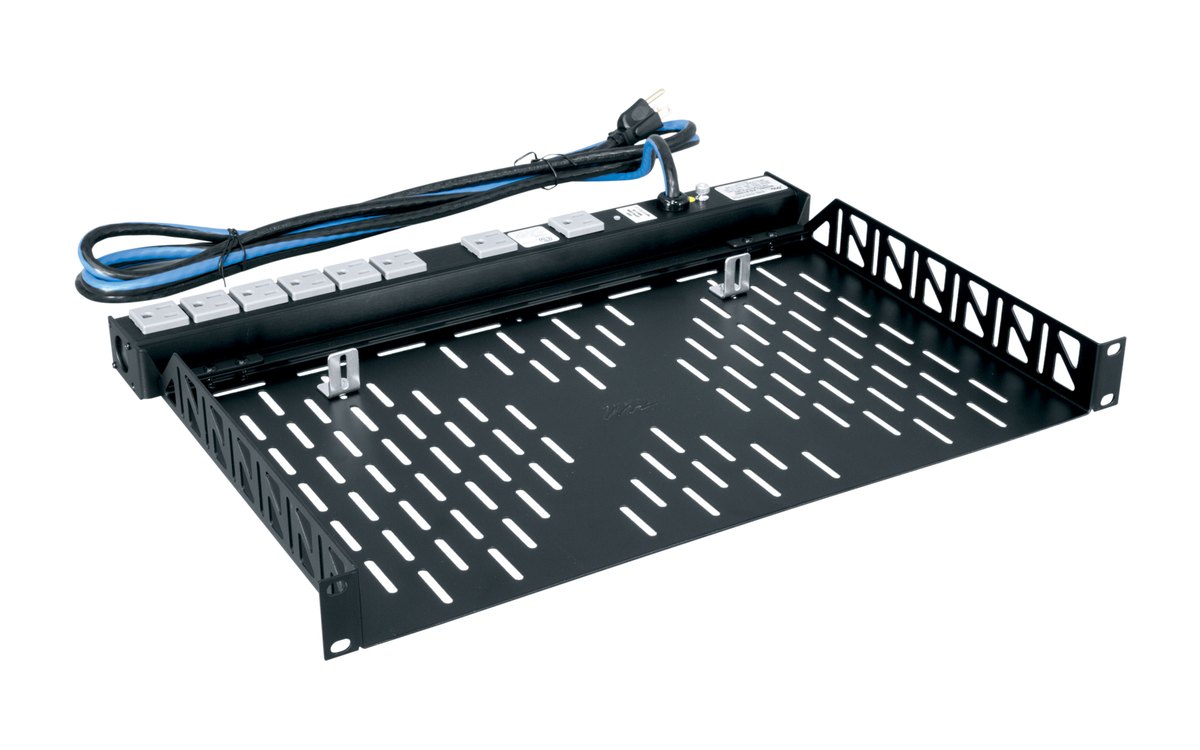

U and UD Series
Shelves and drawers
Shelves for equipment that is not rackmount, and drawers for cables and spares. Custom RSH shelves can be matched to specific devices.
QBP and FC Series
Quiet cooling

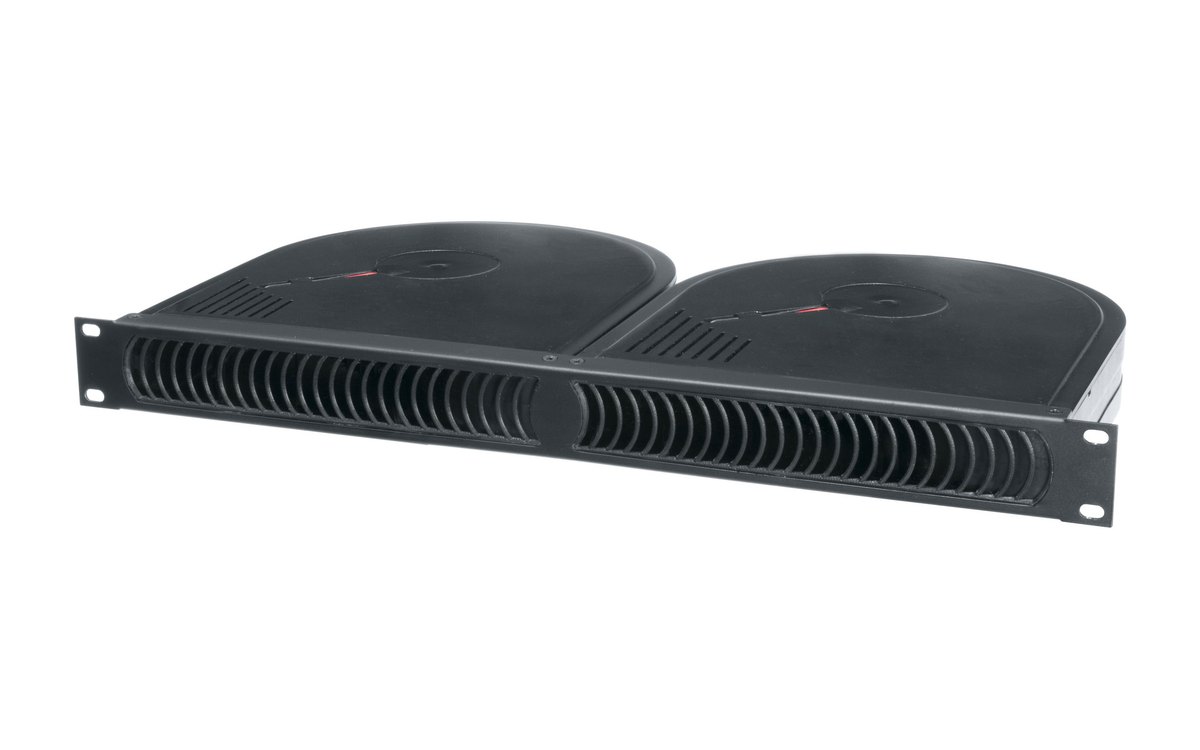

QBP blower panels are rated at 100 CFM from one rack space at 32 dB, with thermostatic control. FC controllers run up to four fans by temperature.
On BGR racks, Forward blank panels click in without tools and Forward vertical lacing drops into the Lever Lock rackrail.
// built with the system
Delivered as parts, or as a working rack.
For a working rack, Varto specifies the racks, power and accessories with the rest of the system and, when the project allows, assembles, cables and tests it in East Rutherford before it ships. We supply the cable, connectors and assemblies for the rack as well.
// related
Where Middle Atlantic fits.
// next step
Send the equipment list or the rack elevation, or describe the room.
We will size the racks and power and quote the accessories.
Or call (888) 656-6233
