Authorized Sony dealer
Sony PTZ and operated cameras for rooms, studios and live production.

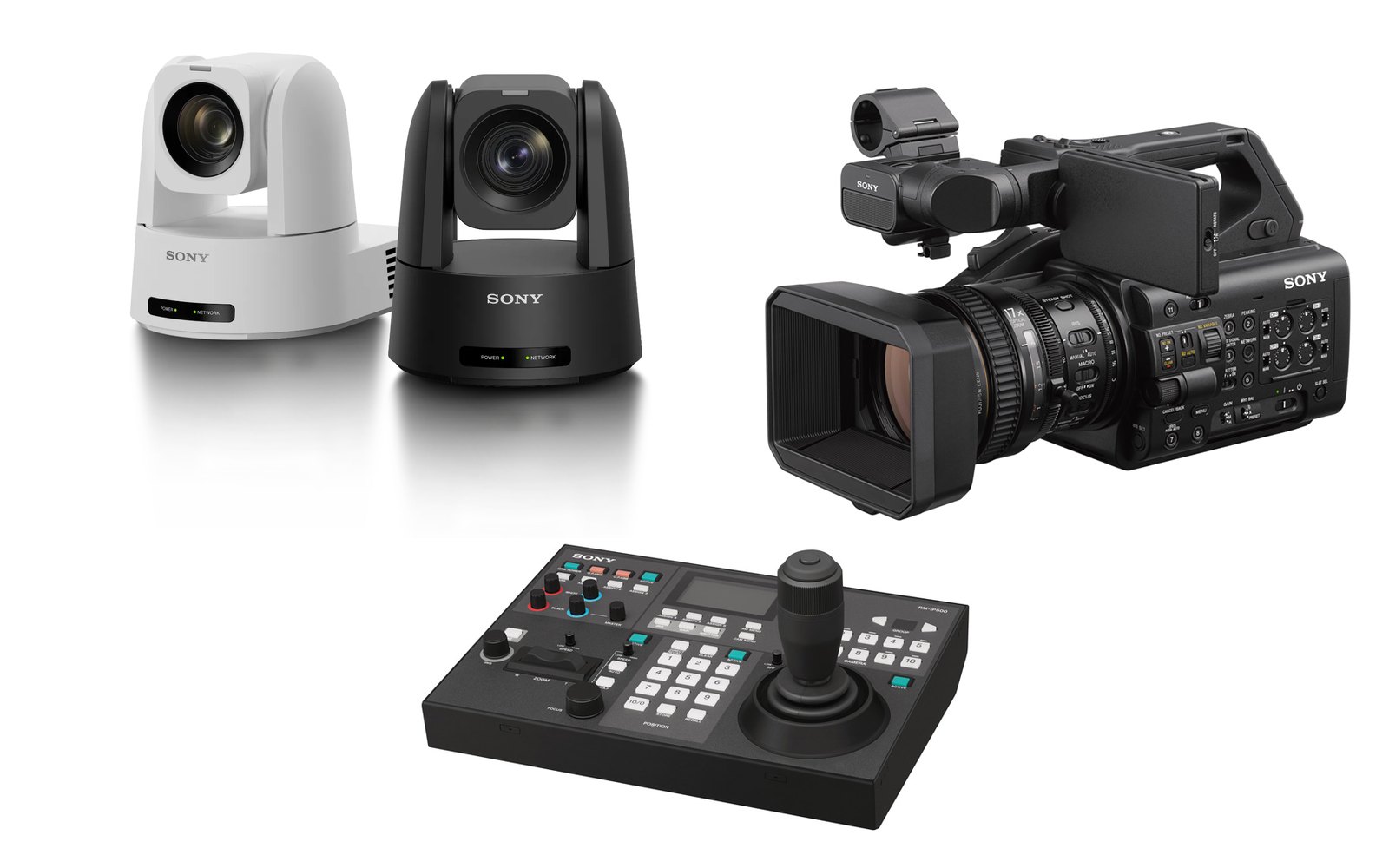

SRG and BRC PTZ cameras with the RM-IP500 controller, XDCAM camcorders and Cinema Line cameras. Varto quotes Sony cameras on their own or as part of a production system, and checks the lenses, outputs and control each position needs.
Prefer to talk? (888) 656-6233
// SRG PTZ cameras
PTZ for classrooms, chambers and sanctuaries.
First decide whether the camera should frame people on its own. The SRG-A40, SRG-A12 and SRG-AS10 have Sony PTZ Auto Framing; the SRG-XS10 is the SRG-AS10 without it, for positions an operator drives or recalls from presets.
4K30 · auto framing

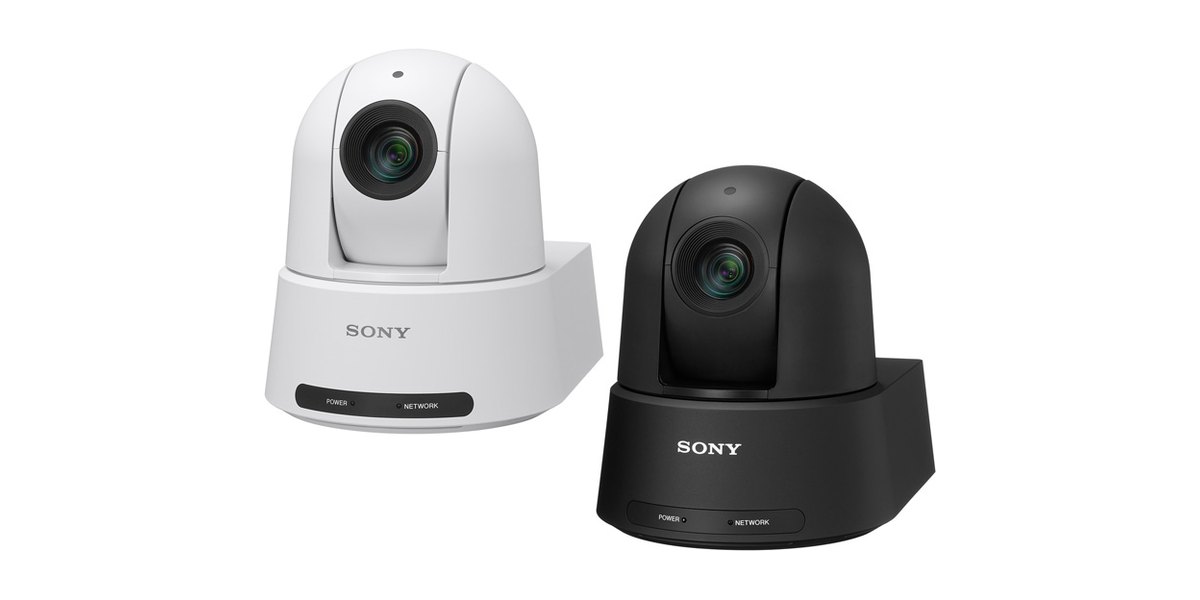

SRG-A40 and SRG-A12
Auto framing for one presenter or a group of up to eight, with 4K30 over HDMI, HD over 3G-SDI and PoE++ power. The A40 has the longer lens for deep rooms and the A12 a 12x lens for smaller ones. NDI|HX is an optional license on both.
4K60 · NDI HX2 included

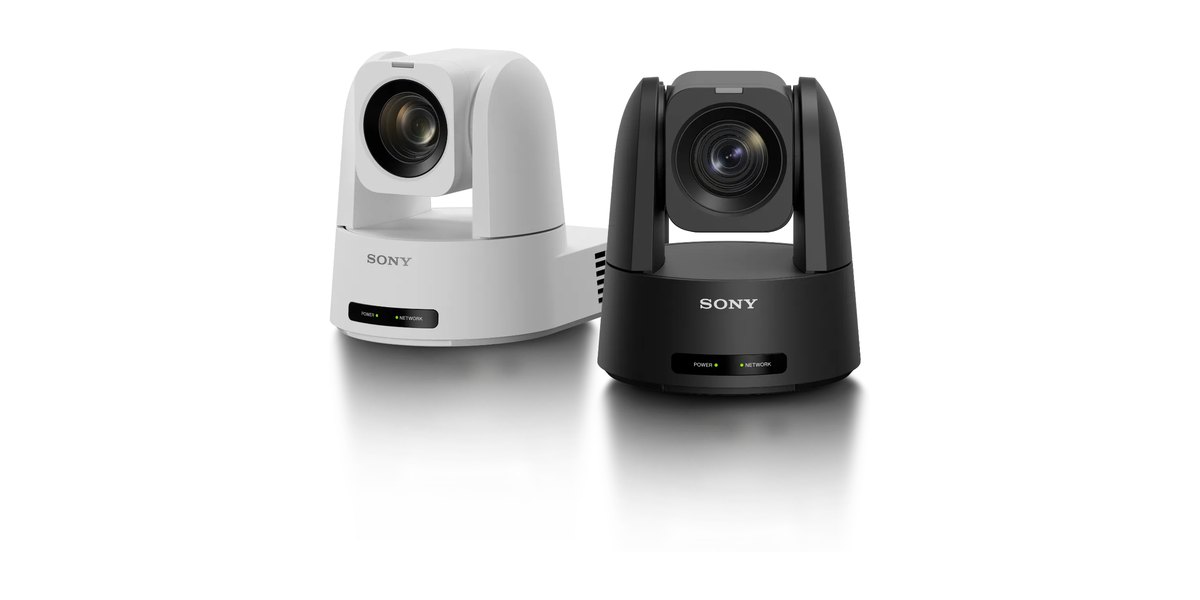

SRG-AS10 and SRG-XS10
A 10x lens, 4K60 over HDMI and NDI HX2, which comes pre-installed, HD over 3G-SDI, and RTMP or SRT streaming from the camera itself. The AS10 adds auto framing; the XS10 leaves it out.
// production PTZ
Robotic cameras that cut with the rest of the show.
When a PTZ has to match operated cameras, look at the sensor and the outputs. The BRC-AM7 and the ILME-FR7 both output 12G-SDI and take genlock and timecode, and one RM-IP500 can drive several of them.
1.0-type sensor · 20x

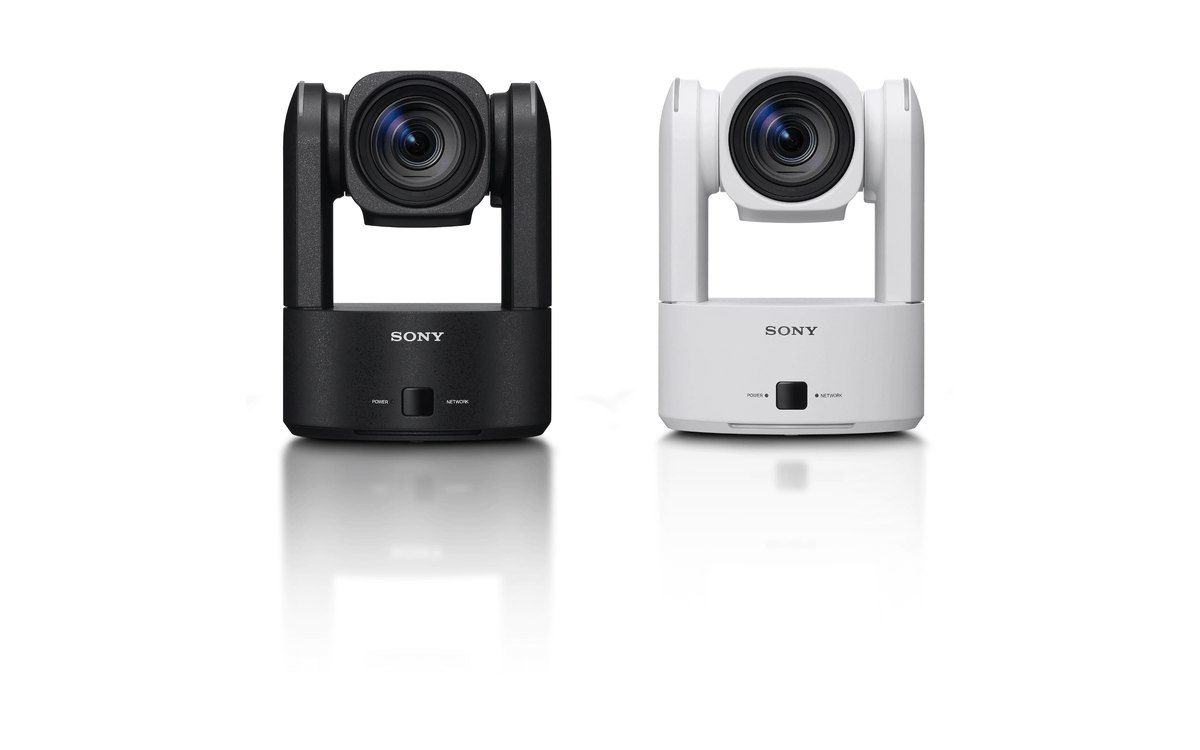

BRC-AM7
4K60 with a 20x optical lens and auto framing, 12G-SDI plus an SFP+ optical output, two XLR inputs, and NDI|HX pre-installed.
full-frame · E-mount

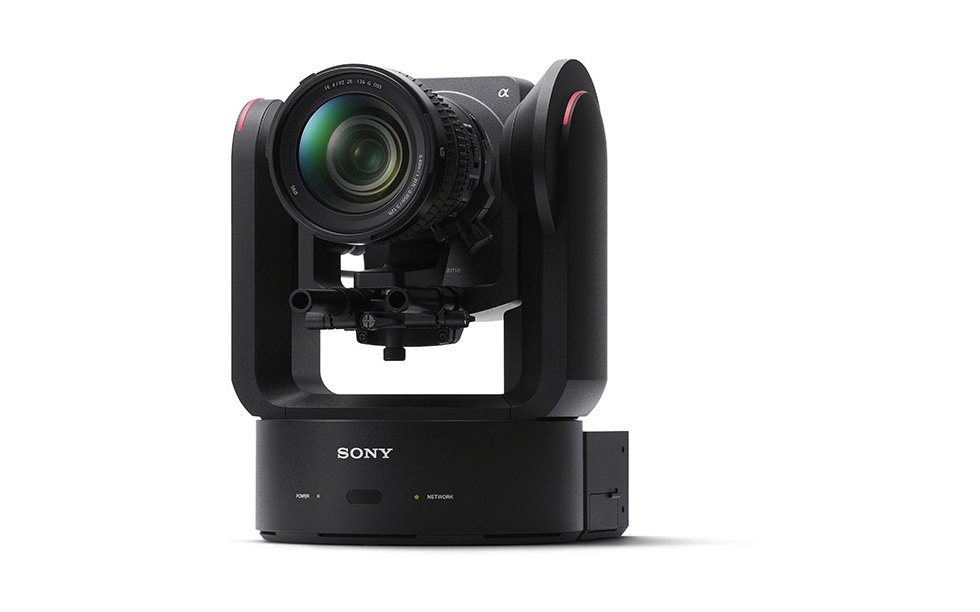

ILME-FR7
A Cinema Line full-frame sensor with interchangeable E-mount lenses, for a shallow-focus look from a robotic position. The lens you choose sets the shot and much of the cost.
joystick controller

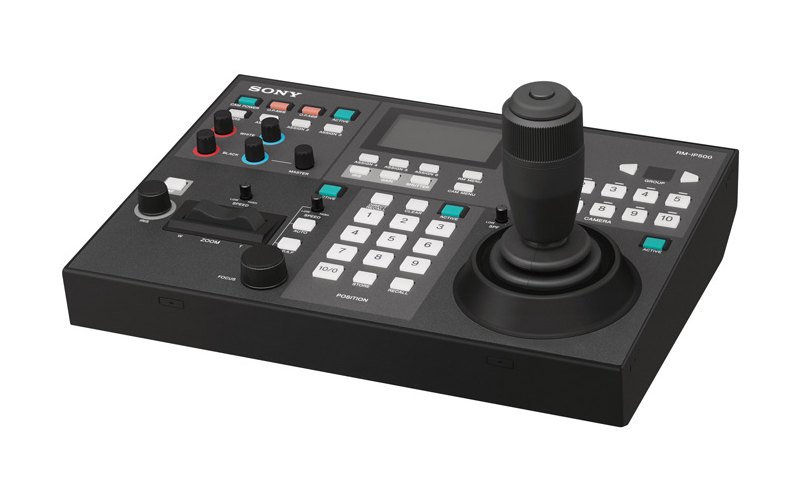

RM-IP500
Runs up to 100 compatible BRC, SRG and FR7 cameras over IP, or seven over RS-422, with up to 100 presets. Some cameras need a firmware update for every feature.
// operated cameras
When someone runs the camera.
An XDCAM camcorder is the simplest operated position: built-in zoom lens, XLR audio, SDI and streaming in one body. A Cinema Line camera is for interchangeable lenses and a more cinematic picture.
1.0-type · 20x

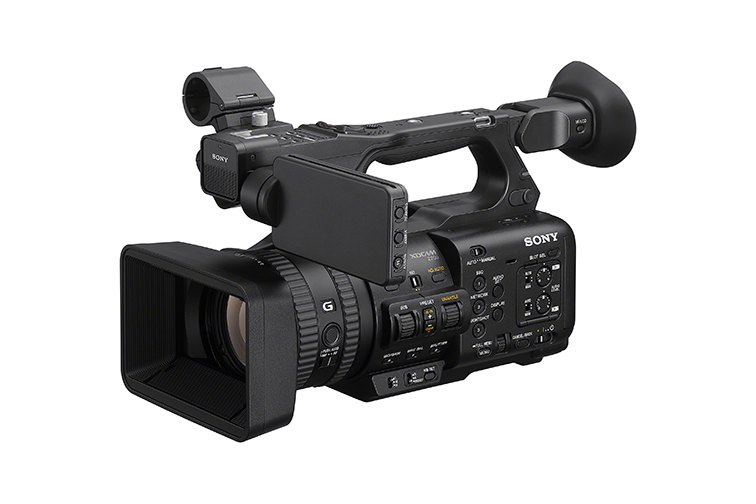

PXW-Z200
A compact XDCAM camcorder with a 20x lens, 12G-SDI with timecode, and RTMP or SRT streaming from the camera.
three-chip · 17x

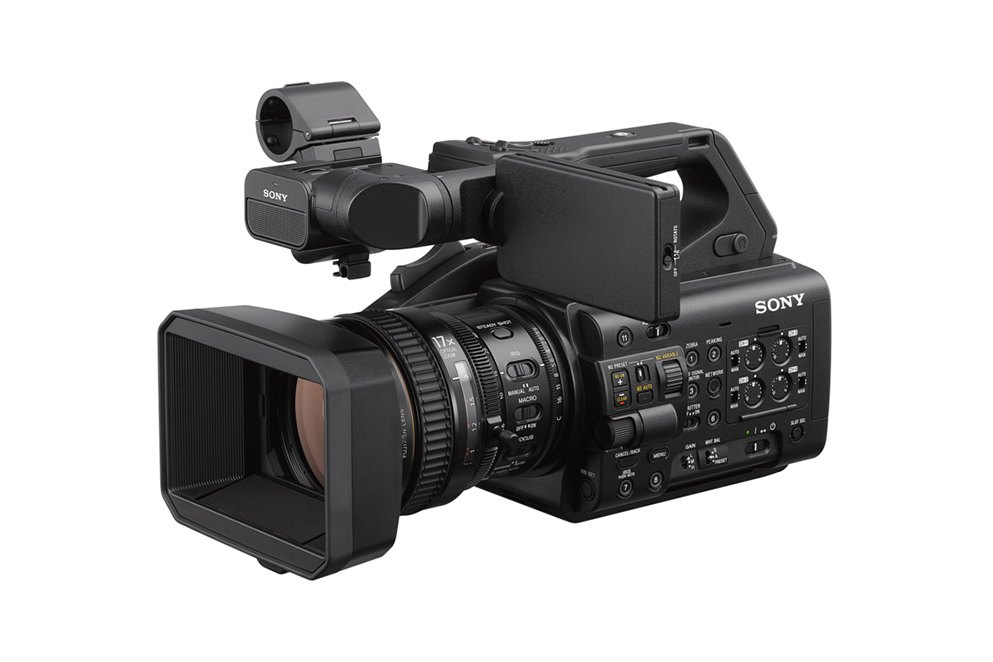

PXW-Z300
Three 1/2-type 4K sensors and a 17x lens that holds F1.9 through the zoom, with 12G-SDI and HDMI out at once.
full-frame · 12G-SDI

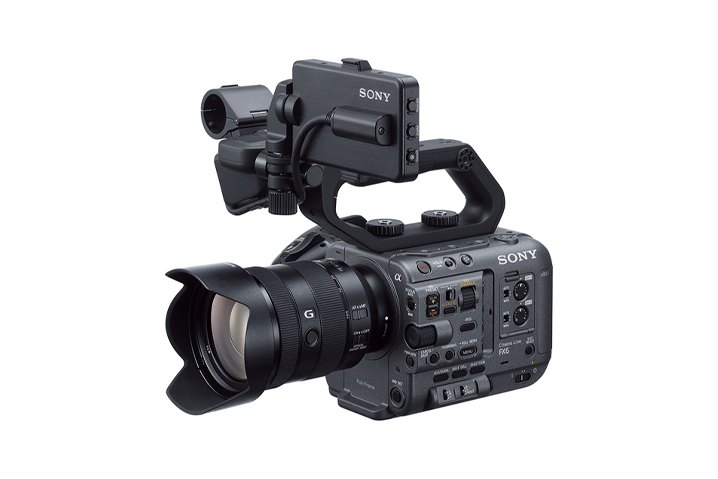

ILME-FX6
Full-frame Cinema Line camera with built-in variable ND, XLR audio, timecode and 12G-SDI for a live switcher. It has no genlock input, so the switcher frame-syncs it.
compact · HDMI
ILME-FX3A and ILME-FX30
Compact E-mount bodies for gimbal and second-camera work, full-frame (FX3A) or Super 35 (FX30). HDMI out only, so an SDI production adds a converter.
// related
Where Sony cameras fit.
// next step
Tell us the room and who runs the cameras.
Or send the model numbers. Either one gets a quotation.
Or call (888) 656-6233
