Authorized Teradek dealer
Teradek encoders for contribution, and zero-delay wireless for the set.
Prism encoders and decoders get video from the production to its destination over a network or cellular. Bolt sends cameras to monitors and switchers without delay, within line of sight. Varto helps quote compatible equipment and plan how it joins the rest of the production.
Prefer to talk? (888) 656-6233
// Prism Flex and Prism Mobile
Send the program from a building, or from the field.
Prism encoders take 12G-SDI or HDMI, encode HEVC or AVC up to 4K60, and stream over SRT, RIST, RTMP and other protocols. Bonding several connections together needs a Teradek Cloud subscription or a Debonding license.
fixed sites

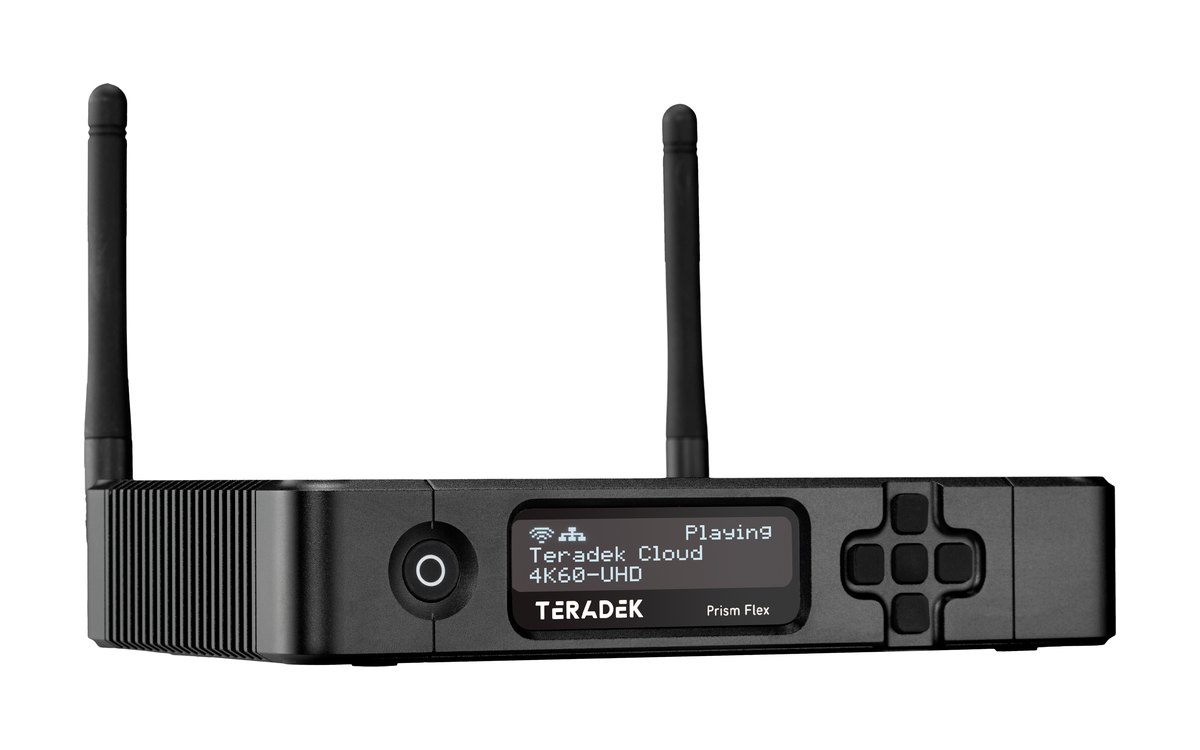

Prism Flex Mk II encoder and decoder
The encoder has 12G-SDI with loop-through and HDMI 2.0 inputs, dual Ethernet, Wi-Fi 6, USB for modems and on-board recording. The matching decoder turns the stream back into 12G-SDI and HDMI at the receiving site.
camera-back · 5G
Prism Mobile 5G
Two internal 5G or LTE modems and up to nine bonded connections, with 4K return video, for news, sports and event contribution from the field.
Teradek Core monitors, routes and restreams Teradek devices from the cloud, and the Teradek Discovery app manages a fleet of Prism units locally.
// Prism Rack
Encoders and decoders by the rack unit.
The 1RU Prism 801 holds three cards and the 2RU Prism 802 holds nine, with optional redundant power on the 2RU. The cards are chosen separately.
nine cards · redundant power

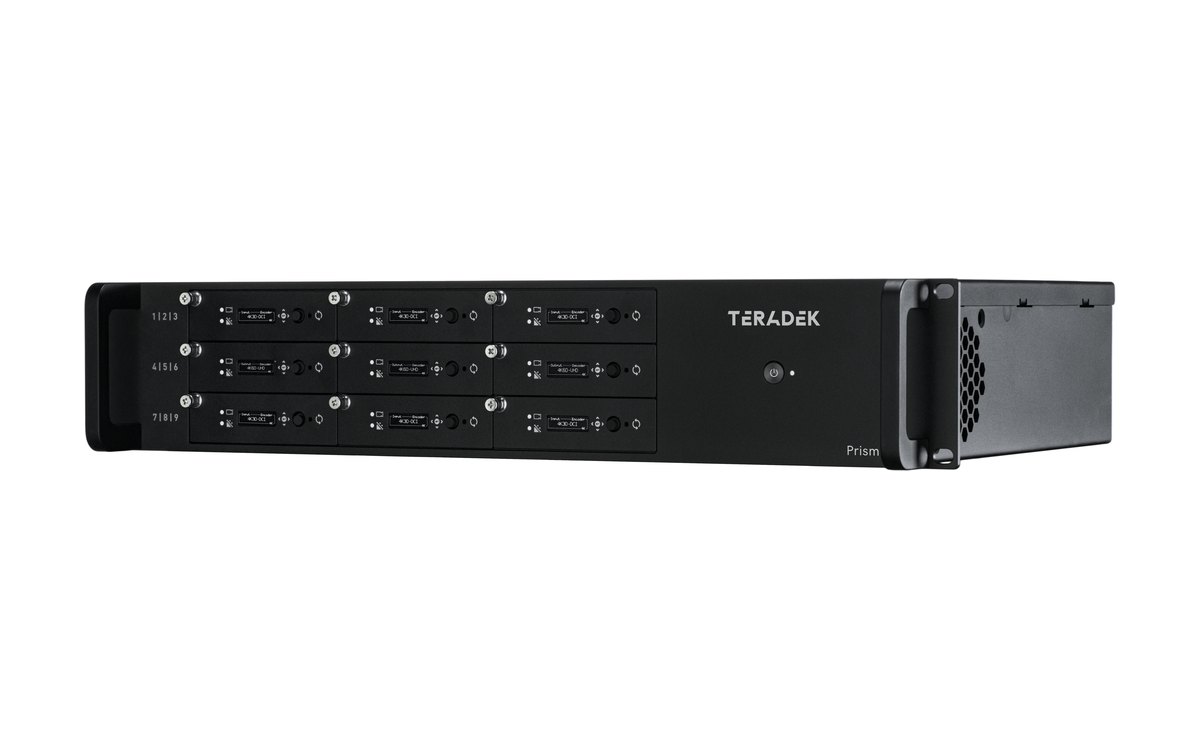

Prism 802
For a facility running many feeds around the clock, with dual gigabit Ethernet and optional redundant power supplies.
encode, decode or both

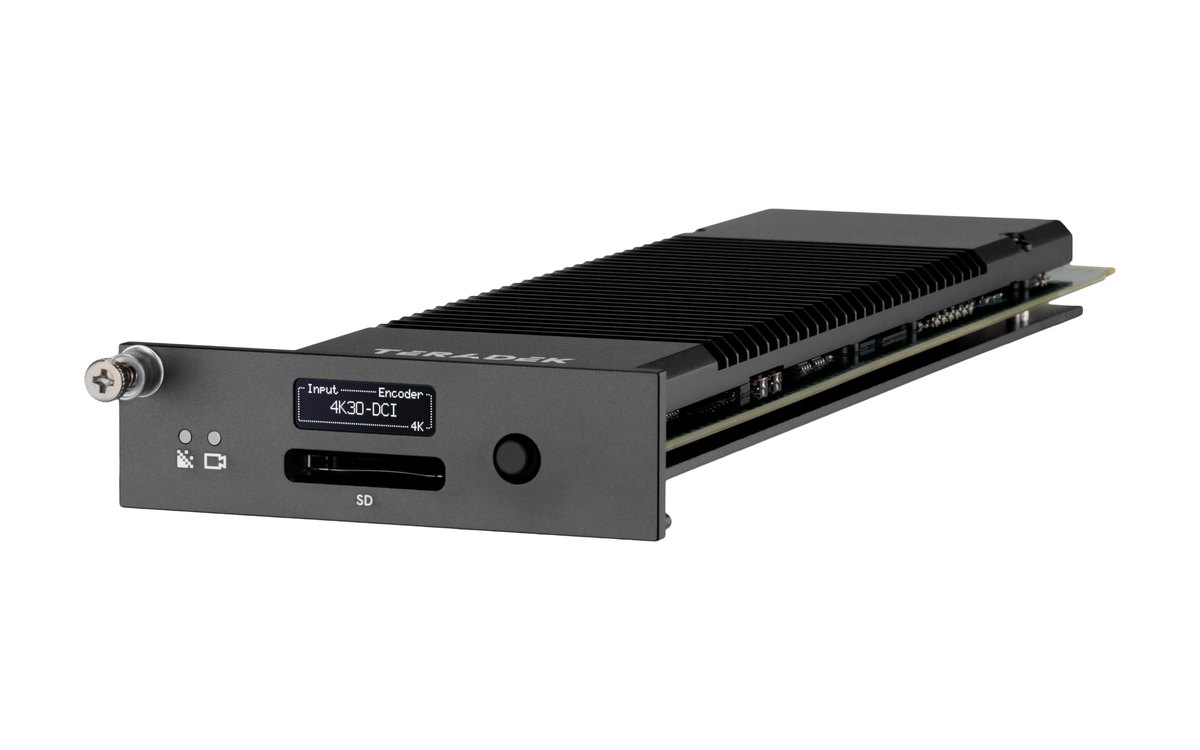

Prism 877 and 853/873 cards
The 877 duplex card, in SDI or HDMI versions up to 4K60 DCI, encodes, decodes or does both at once. The 853 encoder and 873 decoder are single-function 12G-SDI cards up to 4K60 UHD, or 4K30 DCI.
three cards

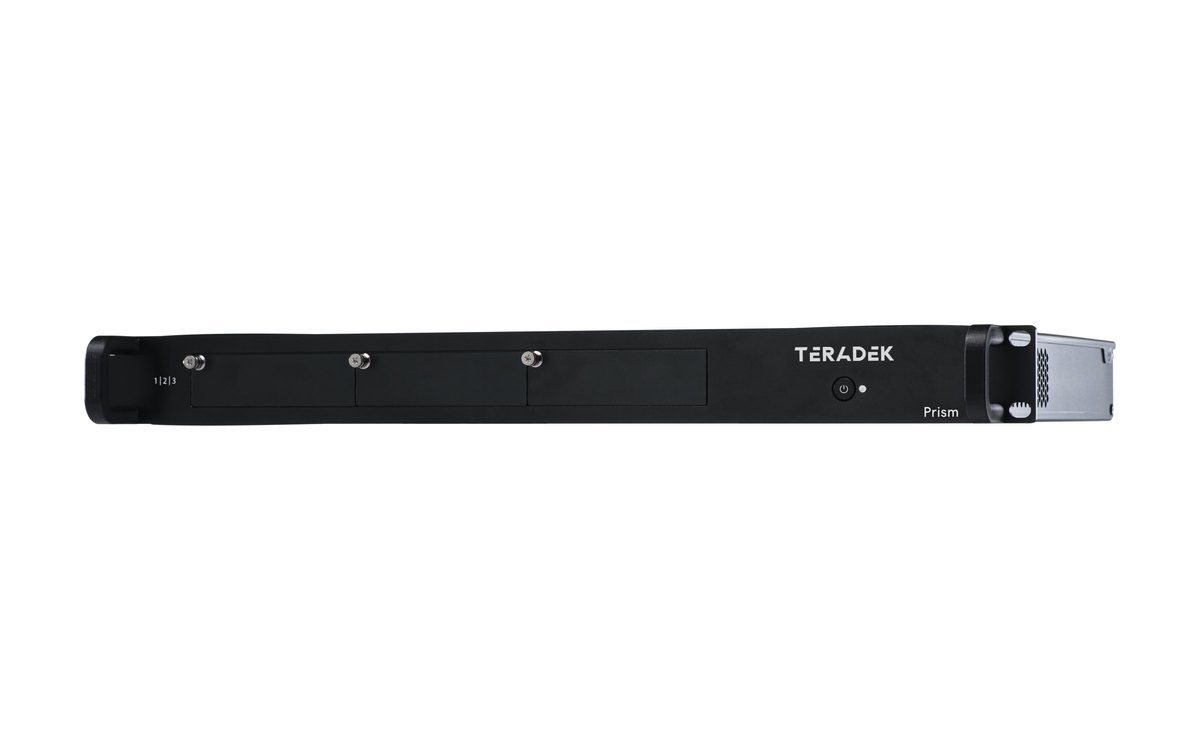

Prism 801
The smaller chassis for a few feeds, with dual gigabit Ethernet.
// Bolt zero-delay wireless
Wireless video on the set, not over the internet.
Bolt is Teradek’s zero-delay wireless video for sending a camera to monitors or a switcher within line of sight, on 5 and 6 GHz. It is a separate job from contribution: Bolt does not stream to a destination.
3G-SDI or 4K30 HDMI
Bolt 6 LT
Up to 1080p60 over 3G-SDI or 4K30 over HDMI, in 750 ft, 1,500 ft and MAX range versions, with up to six receivers per transmitter.
4K60 · 12G-SDI

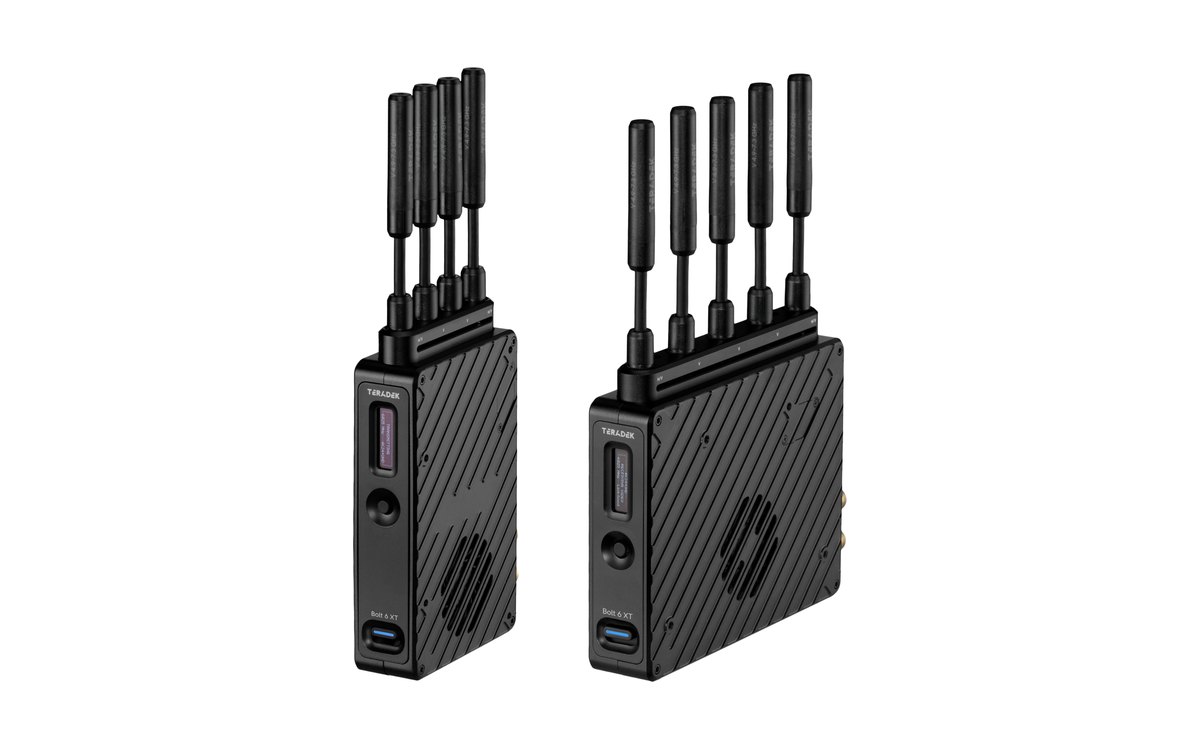

Bolt 6 XT
Full 4K60 10-bit over 12G-SDI in the same range versions, and compatible with Bolt 4K.
12G-SDI and HDMI · data

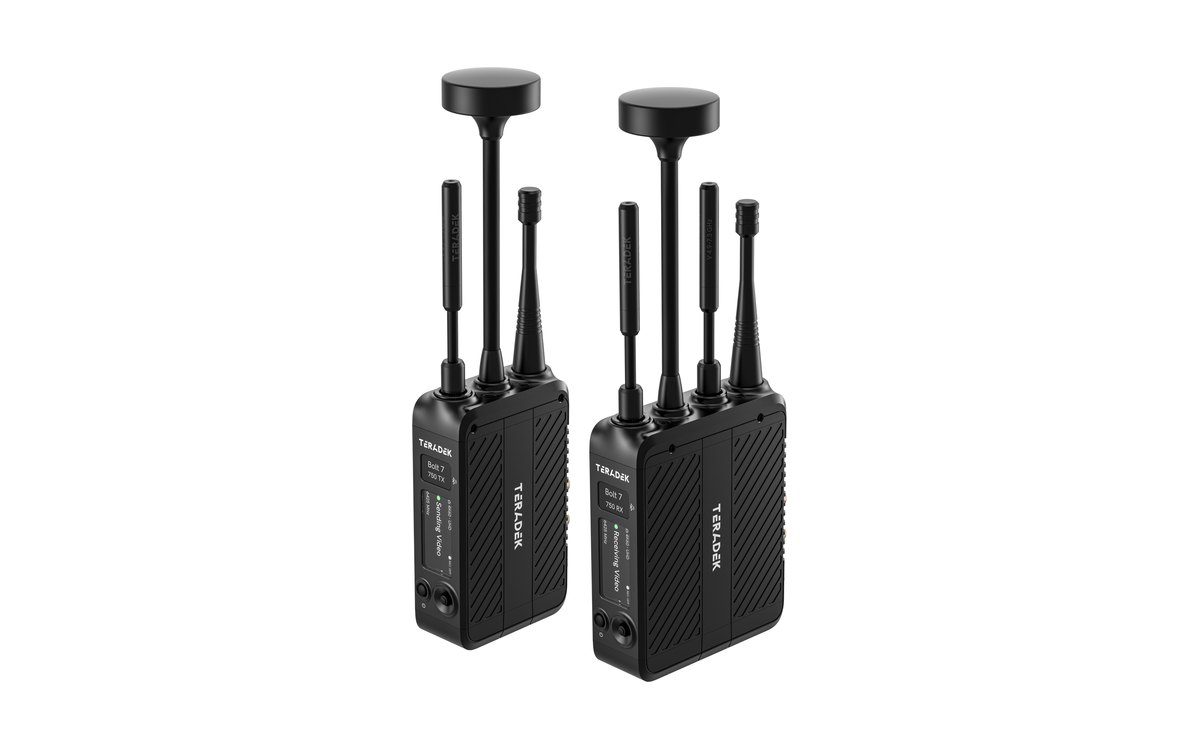

Bolt 7
Adds a 900 MHz data channel for wireless camera and monitor control, and works with Bolt 4K and Bolt 6 systems.
Ranges are line-of-sight figures, and the MAX range needs the optional array antenna and Broadcast Mode.
// related
Where Teradek fits.
// next step
Tell us where the video starts and where it has to go.
Or send the model numbers. Either one gets a quotation.
Or call (888) 656-6233
