Authorized BirdDog dealer
BirdDog NDI PTZ cameras and the controls to run them.
X Series PTZ cameras, MAKI Ultra box cameras, the O4 outdoor PTZ and the KBD keyboard. Varto quotes one camera or several positions, and matches the outputs, power and control to the switcher and network you already have.
Prefer to talk? (888) 656-6233
// X Series PTZ
Choose by what has to come out of the camera.
Every X Series camera sends NDI over one network cable, with SRT and RTMP streaming as well. The difference is the rest: the X1 family has HDMI and USB but no SDI, the X4 Ultra and X4E Ultra send 4K60 over NDI and HDMI and add 3G-SDI for HD up to 1080p60, and the X5 Ultra adds 12G-SDI for 4K60 on one SDI cable.
HD or 4K30 · no SDI

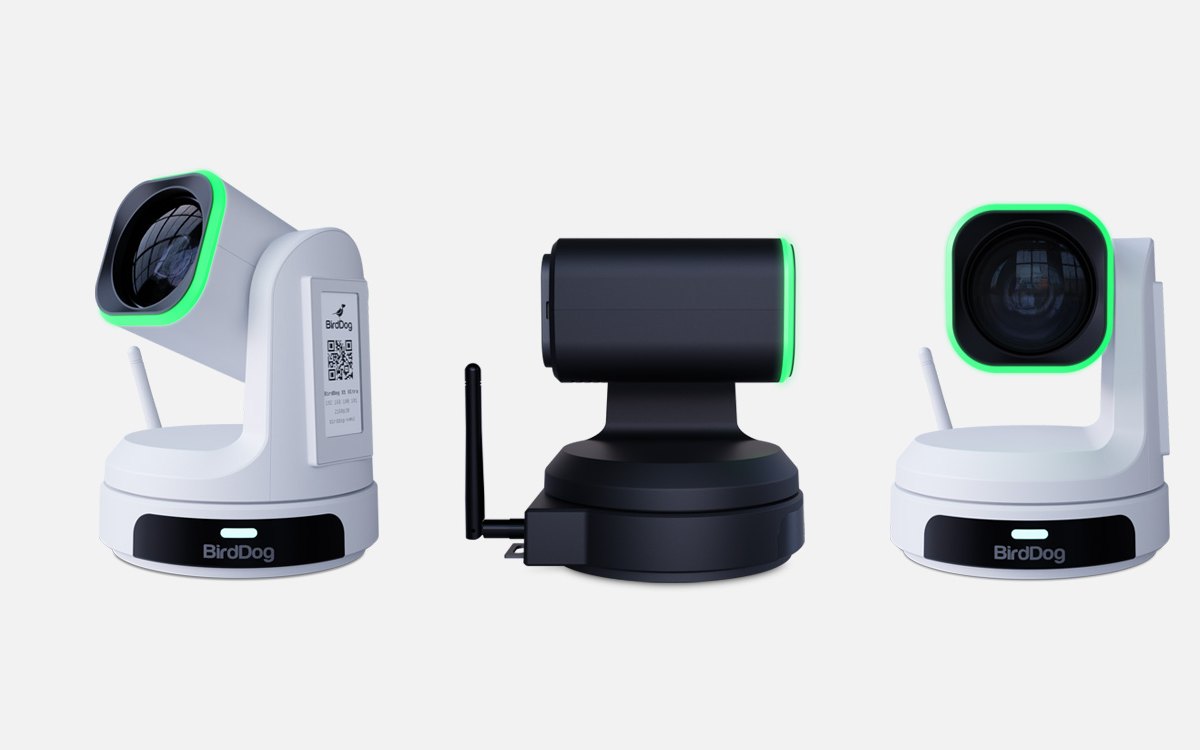

X1, X1 30x and X1 Ultra
HD with a 20x or 30x lens, or 4K up to 30p with a 12x lens in the Ultra. HDMI, USB-C webcam and NDI out, PoE and Wi-Fi, and an NDI decoder on the HDMI port for a return feed.
4K60 · HD on 3G-SDI

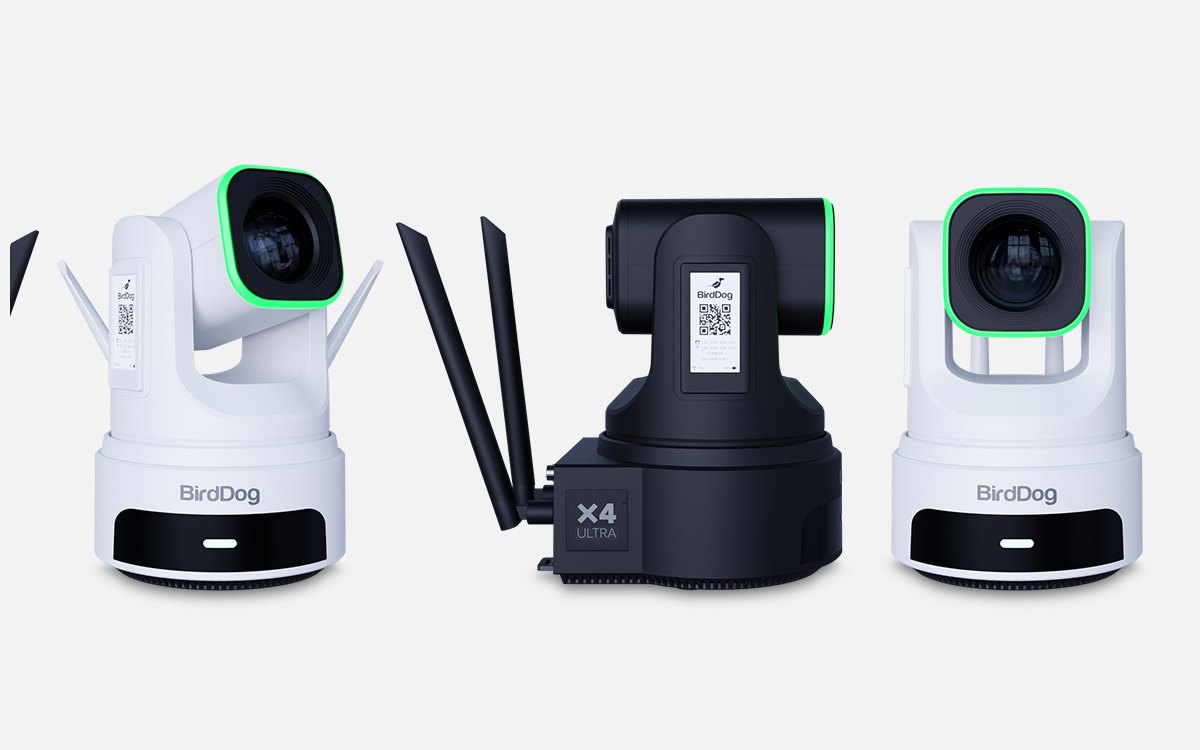

X4 Ultra and X4E Ultra
A 20x lens, 4K60 over HDMI and NDI|HX3, HD over 3G-SDI, and presenter and zone tracking. The X4 Ultra adds Wi-Fi 6 and a built-in battery for positions without cable; the X4E Ultra drops both for fixed installs.
4K60 · 12G-SDI

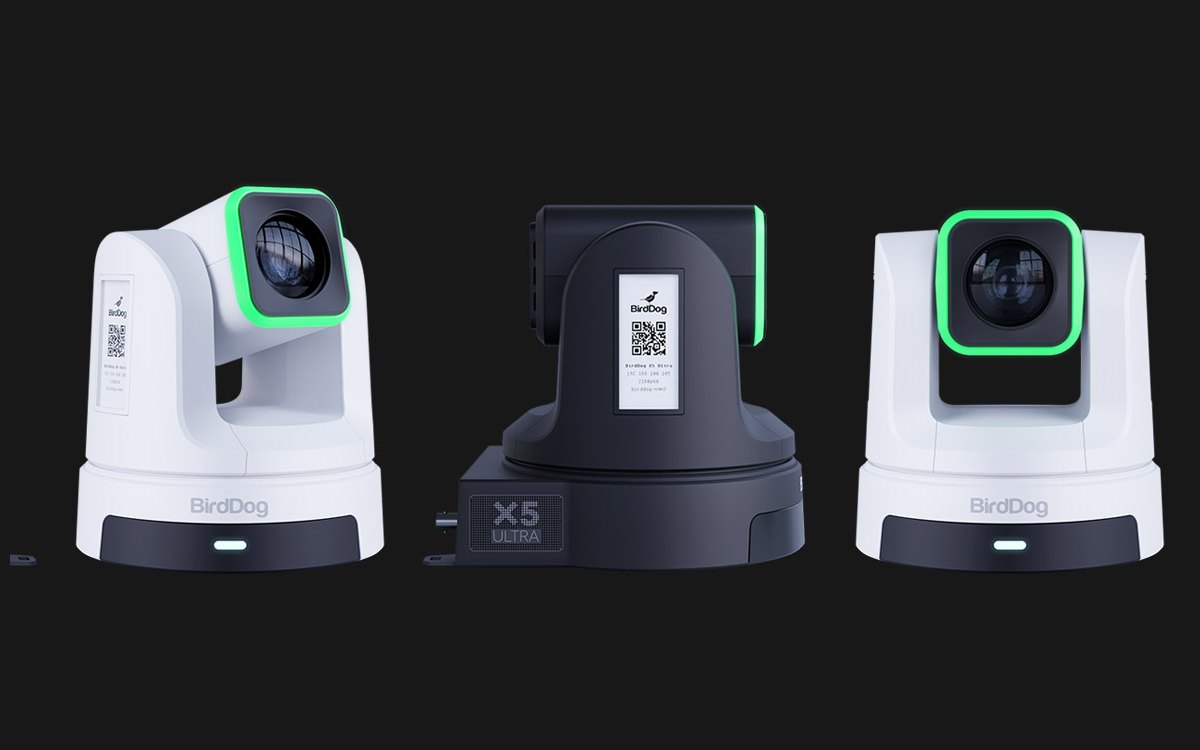

X5 Ultra
The indoor model with 12G-SDI, two HDMI outputs, RS-232 and RS-422 control and a 49 mm filter ring, for studios that want baseband video alongside NDI.
Power differs by model: the X1 family runs on standard PoE, while the X4 Ultra, X4E Ultra and X5 Ultra need PoE+. We check the switch before we quote the cameras.
// specialty cameras
Box cameras, a large-sensor PTZ and outdoor positions.
Some positions need a different camera: a tight point-of-view spot, a broadcast or LED-wall stage, or a mount that stays outside all year.
box camera · no pan or tilt
MAKI Ultra
A compact camera with a 12x or 20x zoom, 4K60 over HDMI and NDI|HX3, and HD over 3G-SDI, for lecterns, drum kits and the top of a display. It zooms and focuses; it does not pan or tilt.
4/3-inch sensor · genlock

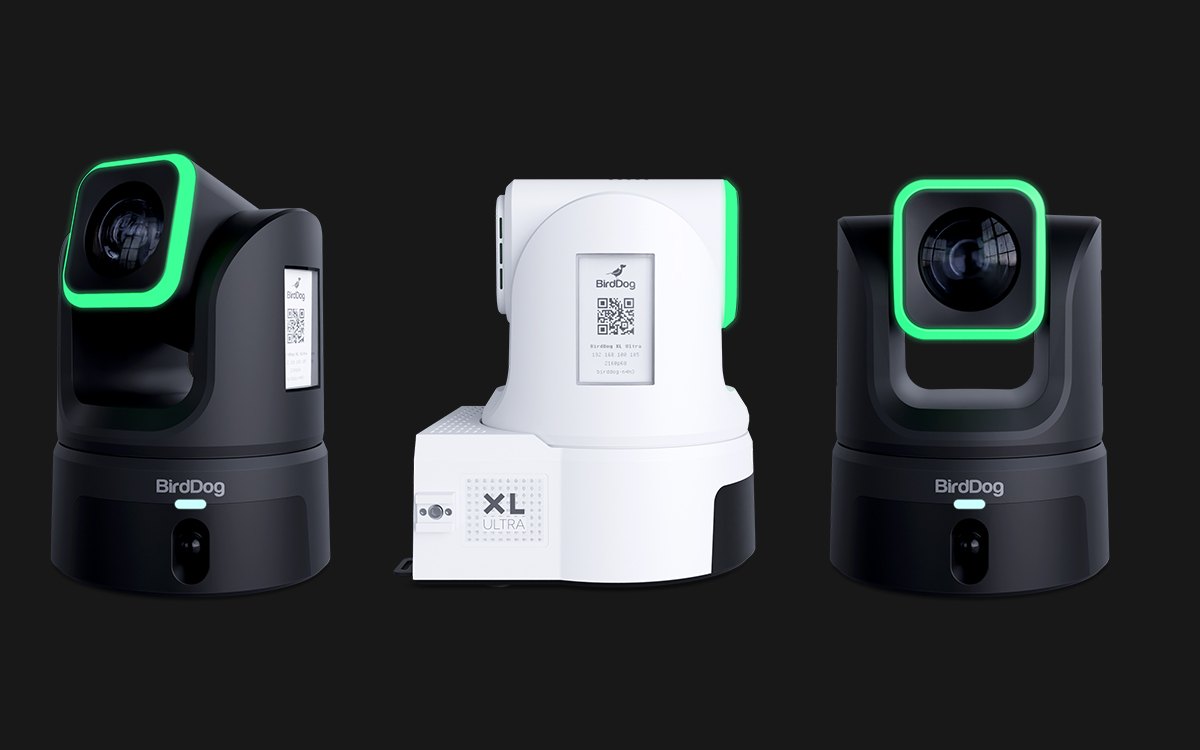

XL Ultra
A large-sensor PTZ with a second built-in panoramic camera, 12G-SDI and SFP+ fiber, genlock, timecode, FreeD and XLR audio, for broadcast and virtual production stages.
outdoor · IP66

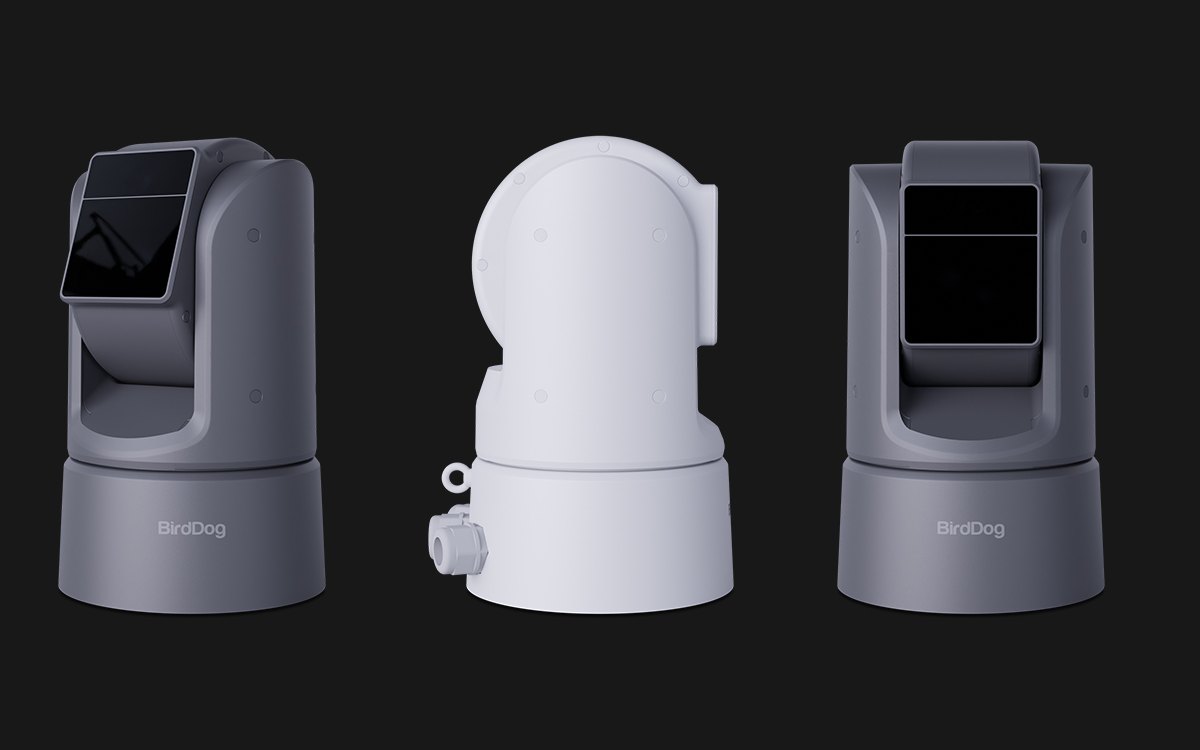

O4
The current outdoor model: a weatherproof 4K60 PTZ with a 30x lens, a heater and an IR laser, 12G-SDI and a fiber port, for stadiums, campus buildings and poles.
BirdDog ended production of the P Series and the A200 and A300 outdoor cameras in April 2024 and continues to support them. If you own them, we quote their mounts and accessories.
// control
Run the cameras from a keyboard, or a panel you already use.

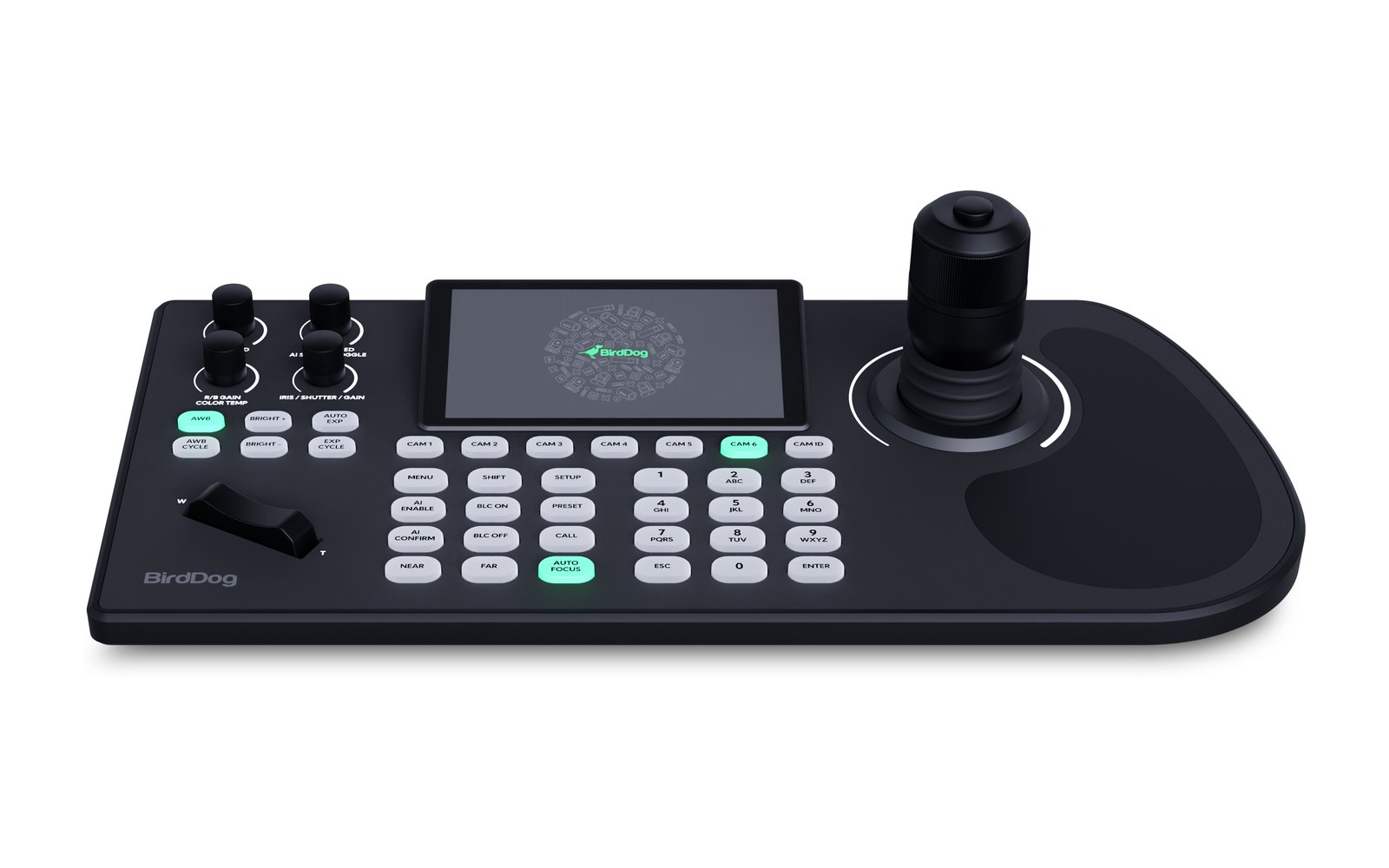

The KBD gives an operator a joystick, a zoom rocker and shading knobs, a five-inch screen with up to four live camera previews, and control of up to 255 cameras over NDI, VISCA over IP, ONVIF, Pelco or serial.
Connected to a TriCaster or vMix, the KBD screen shows which camera is on air. X Series cameras also take SKAARHOJ, Stream Deck and other controllers, and BirdDog Cam Control on Windows or Mac handles shading from a desk.
// BirdDog in our work
Outdoor at a stadium, and in our demo studio.

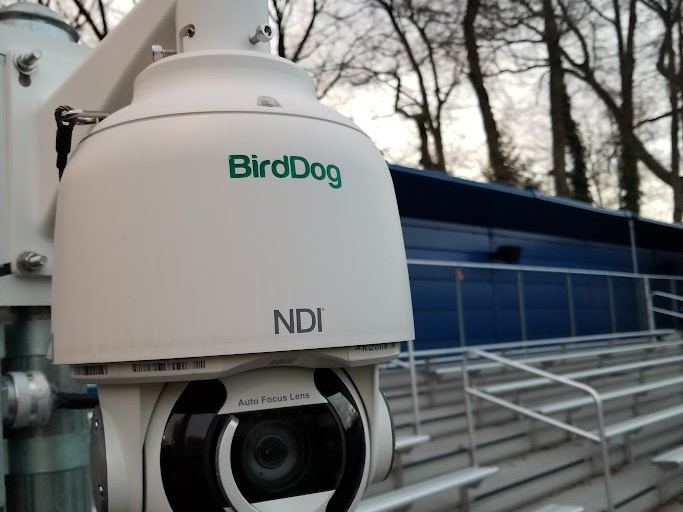

BirdDog outdoor PTZ, campus stadium · 2021
Our broadcast work includes PTZ systems built on BirdDog, among them this outdoor camera at a campus stadium.
BirdDog cameras are also in our East Rutherford demonstration studio. Ask to see them when you book a visit, and we will confirm what is set up before you come.
// related
Where BirdDog fits.
// next step
Tell us the positions, the switcher and the network.
Or send the model numbers. Either one gets a quotation.
Or call (888) 656-6233
