SKAARHOJ camera and production control.
Put camera moves, image adjustments and live switching under your hands. SKAARHOJ makes configurable hardware panels for PTZ cameras, camera shading and switchers, with the control engine built into every panel. Varto quotes a controller on its own or plans the control setup around the equipment you run.
Prefer to talk? (888) 656-6233
compact

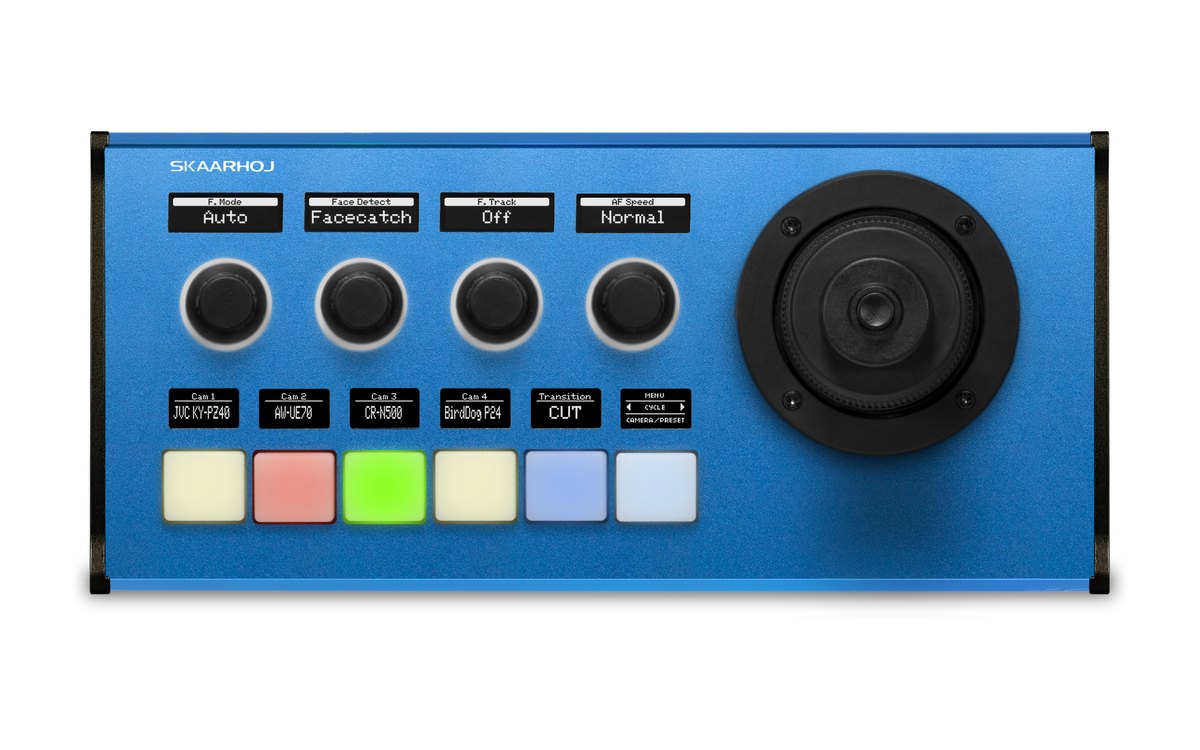

PTZ Fly
Six four-way buttons with OLED labels, four encoders and a joystick, with a Hall-effect joystick option, for small productions, lecture halls and mobile setups.
presets and shading

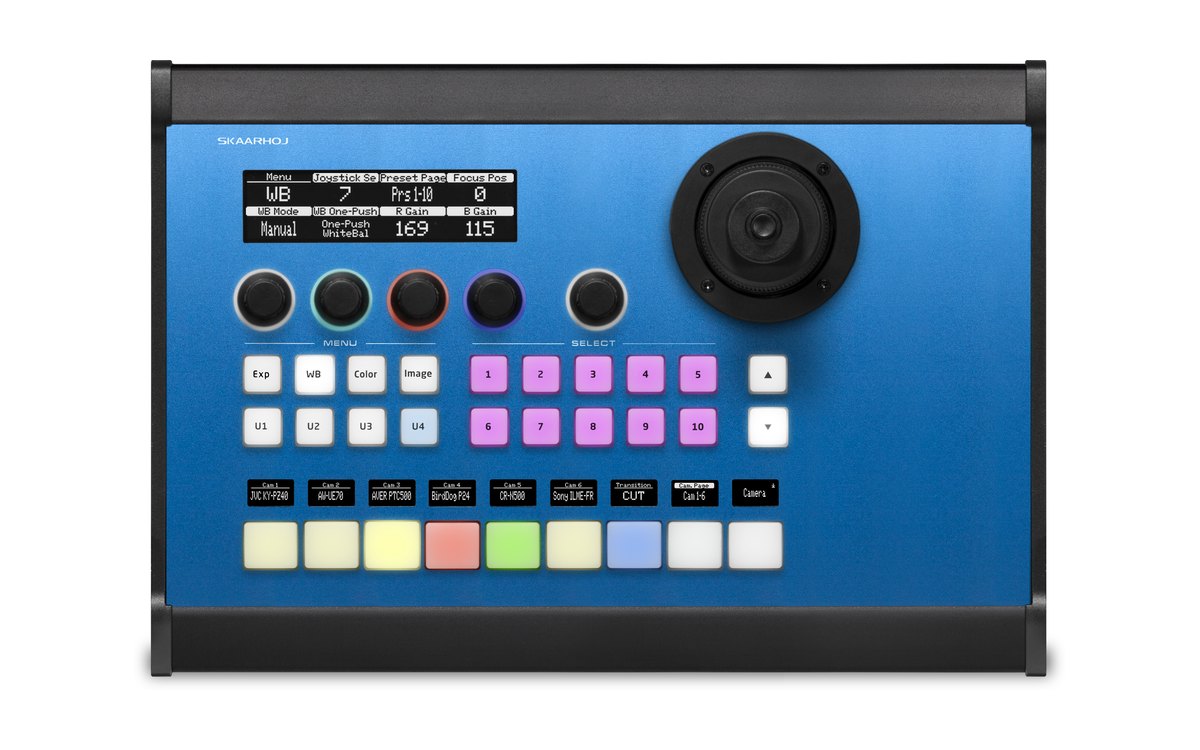

PTZ Pro
Adds a ten-button preset section, exposure and shading controls and nine camera selectors, for talk shows, concerts and houses of worship.
full-size

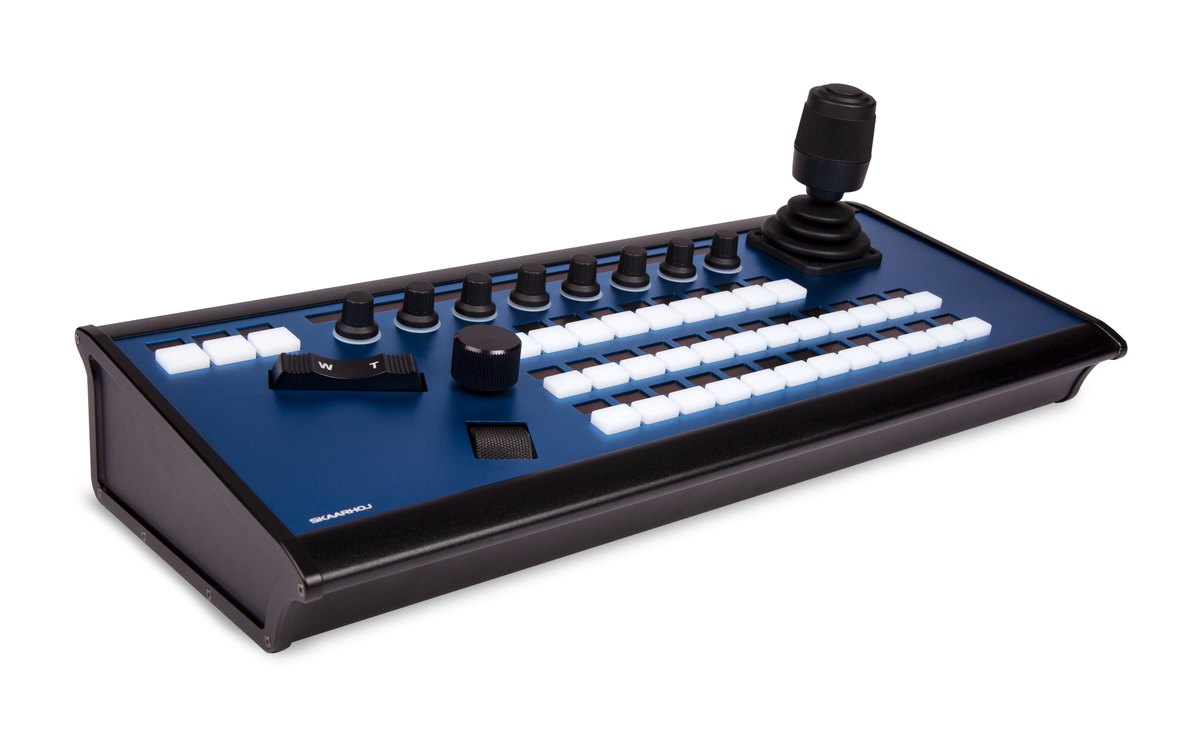

PTZ Extreme
A Hall-effect joystick, zoom rocker, focus wheel and iris knob for PTZ cameras and robotic heads. Through a supported switcher or router it can also put the camera being moved on a monitor.
Compatibility is model by model, so we check your exact cameras and switcher against SKAARHOJ’s device list before we quote.
// camera shading
Match the cameras while the show runs.
RCP Pro is a traditional shading panel for one camera, or for up to eight from one panel. Color Fly sets iris on four cameras at once with motorized faders.
shading panel

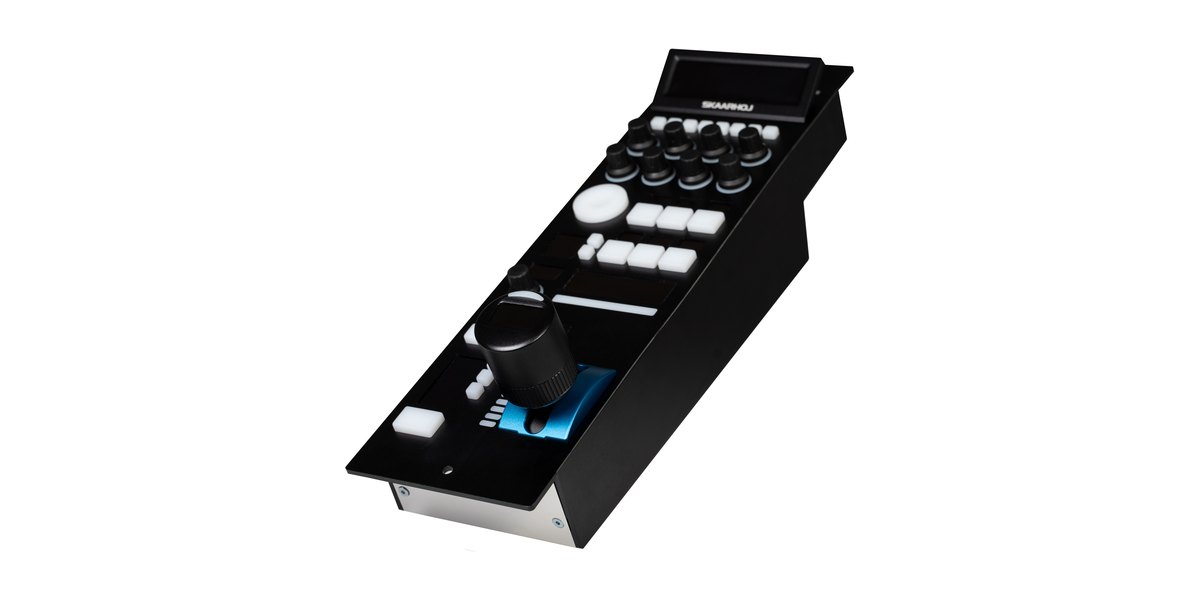

RCP Pro

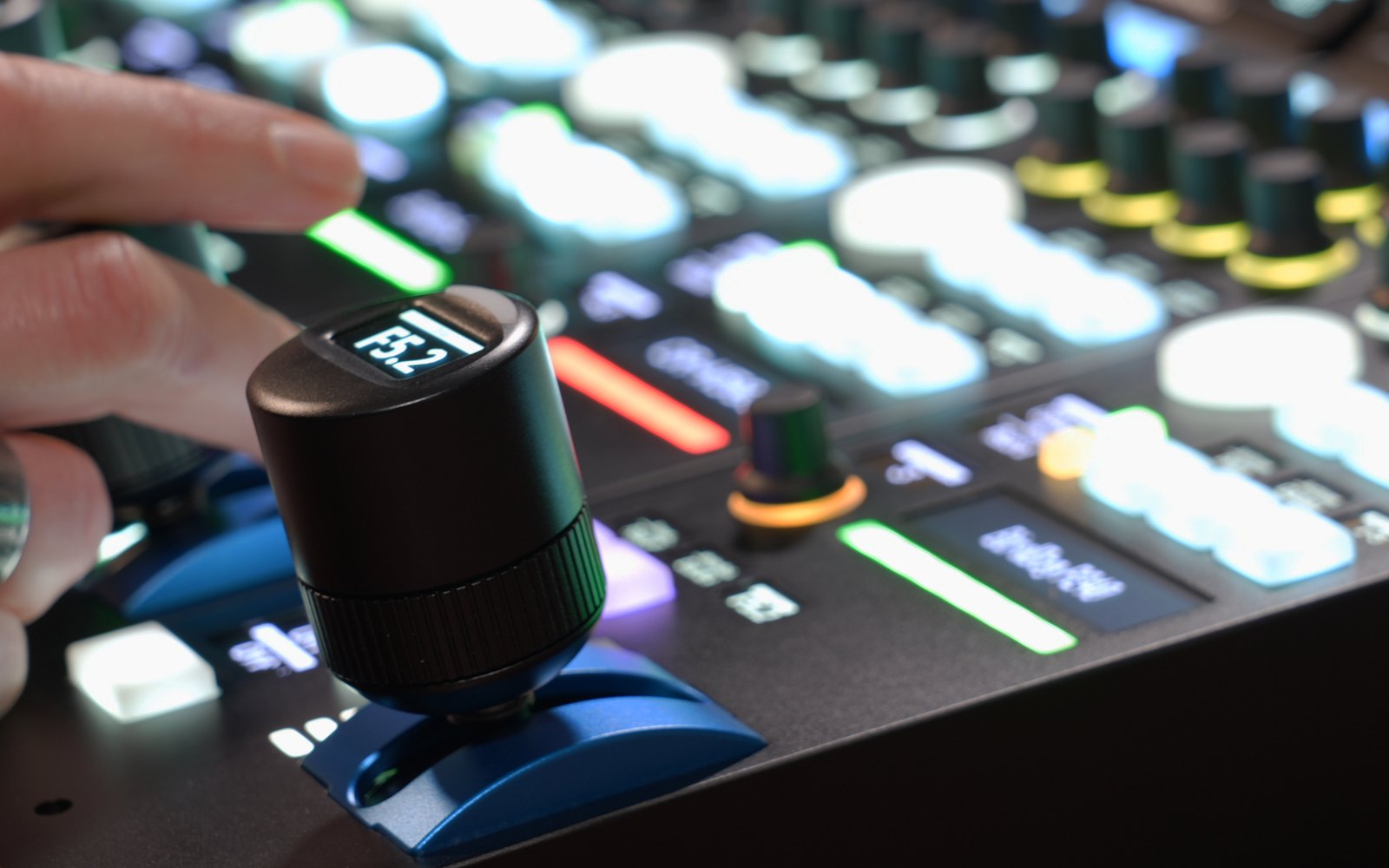

A joystick for iris and pedestal that shows the iris value and tally, eight camera selectors, and GPI and relay connections, for supported ARRI, RED, Sony, Panasonic, Canon and Blackmagic Design cameras.
four faders

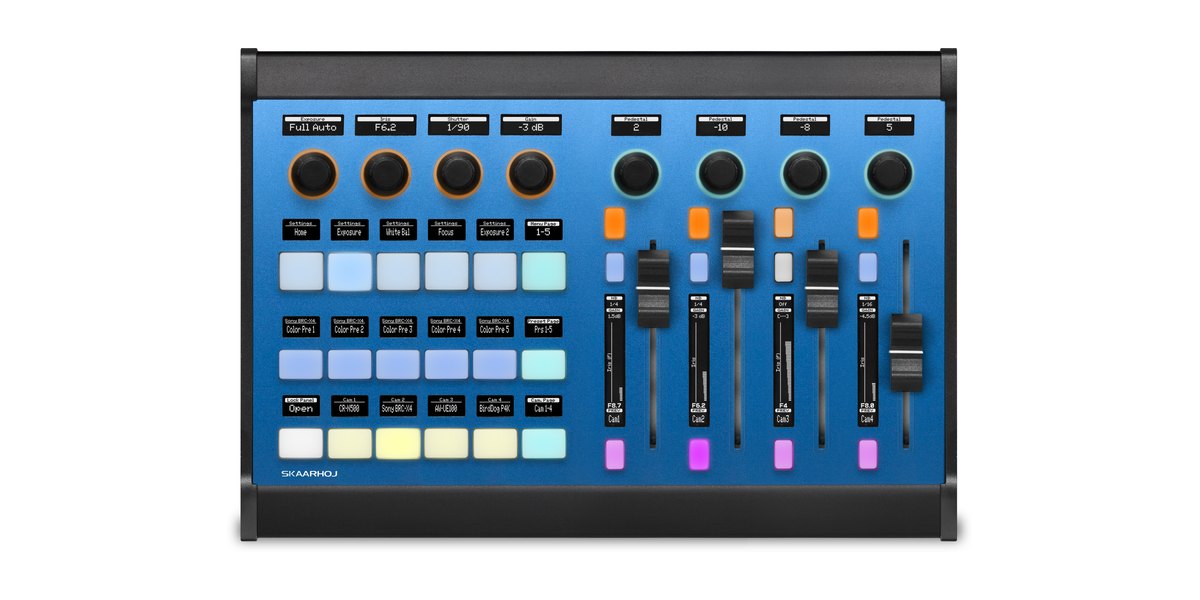

Color Fly
Four motorized faders for iris on four cameras at a time, with eight encoders and OLED-labeled buttons. It can also work as an audio or DMX lighting surface.
// switching
A switching surface for ATEM, vMix or TriCaster.
Air Fly puts program, preview and transitions under the operator’s hands. Air Fly Pro and Rack Fusion Live add PTZ control, and Rack Fusion Live sits on a desk or in a rack.
ATEM, TriCaster or vMix

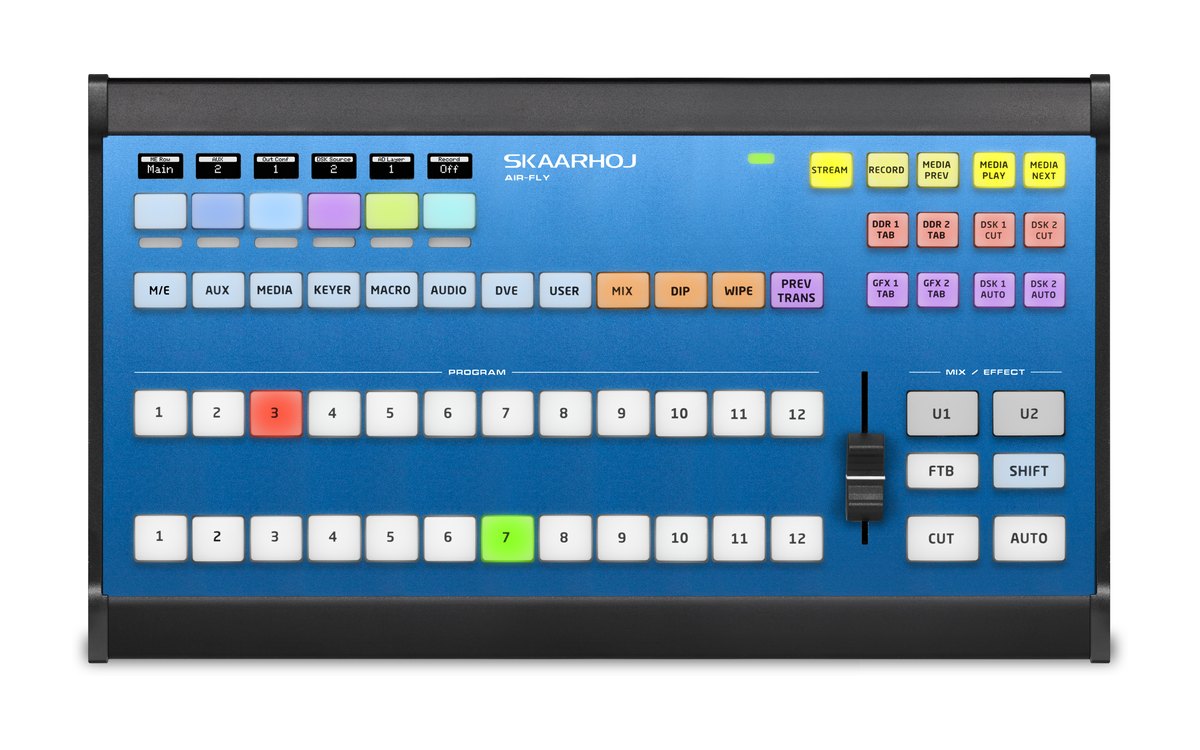

Air Fly
The smallest switching panel, with keys printed in each system’s own naming. The TriCaster and vMix versions are built to order.
switching plus PTZ
Air Fly Pro
Twelve program and preview buttons, a Hall-effect T-bar and a PTZ joystick section, for ATEM, vMix and TriCaster.
rack or desktop

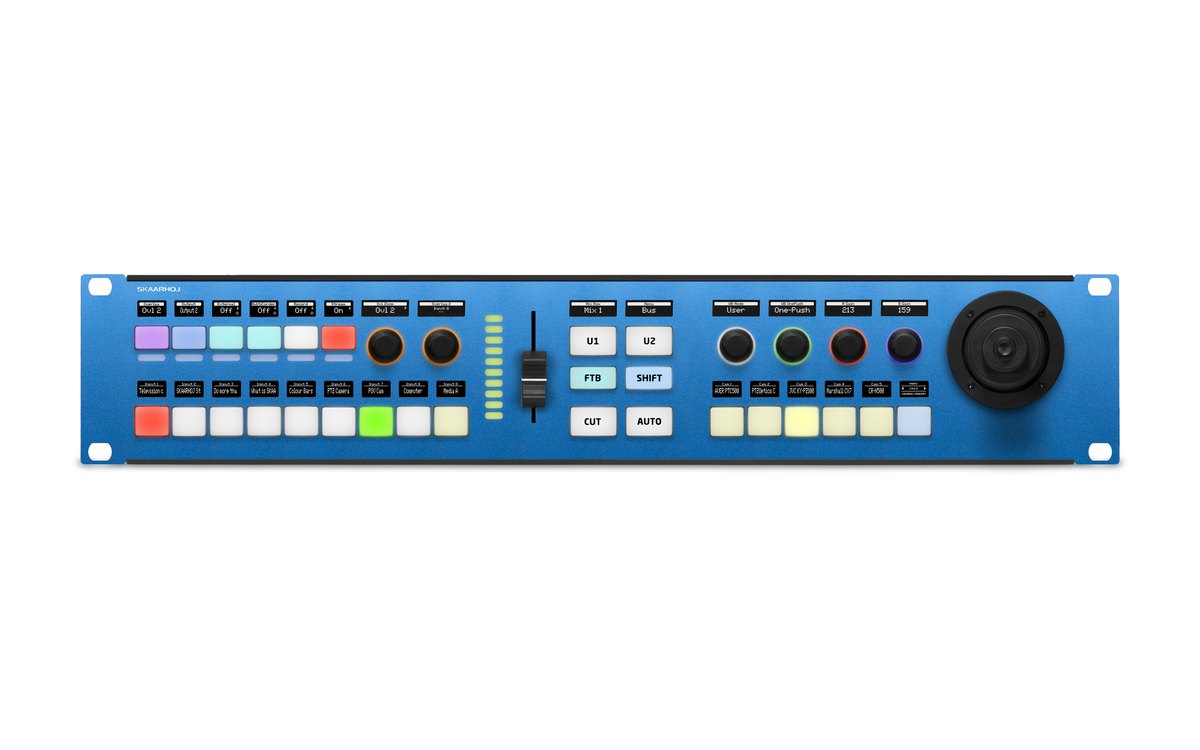

Rack Fusion Live
Switching and PTZ control in one chassis, for ATEM or vMix with Panasonic, Canon, Sony or BirdDog cameras.
For a larger control room, the modular Mega Panel range, including the 3 M/E Vela set, covers switchers such as TriCaster, Panasonic Kairos, Ross Carbonite and Blackmagic ATEM.
// behind the panels
No computer to run it, and a browser to set it up.

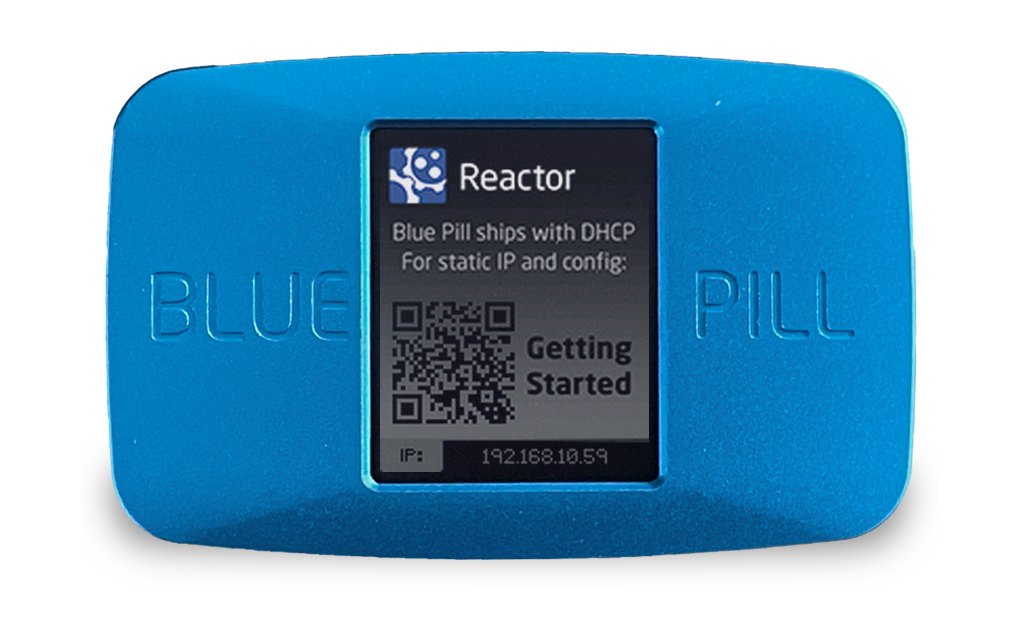

Every SKAARHOJ panel has the Blue Pill engine built in and is configured in Reactor, a web interface served by the panel itself, so most buyers need nothing extra.
configuration

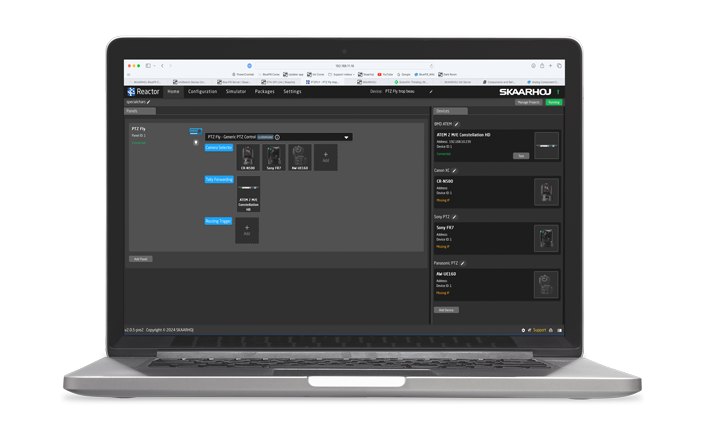

Reactor
Pairs panels with devices, customizes every button, encoder, fader and joystick, and builds macros and triggered automation.
hub and licenses
Blue Pill Server
A stand-alone engine for a central hub, remote sites, or third-party panels such as Stream Deck, X-keys and Riedel Smart Panels, which take an add-on license.
interfaces

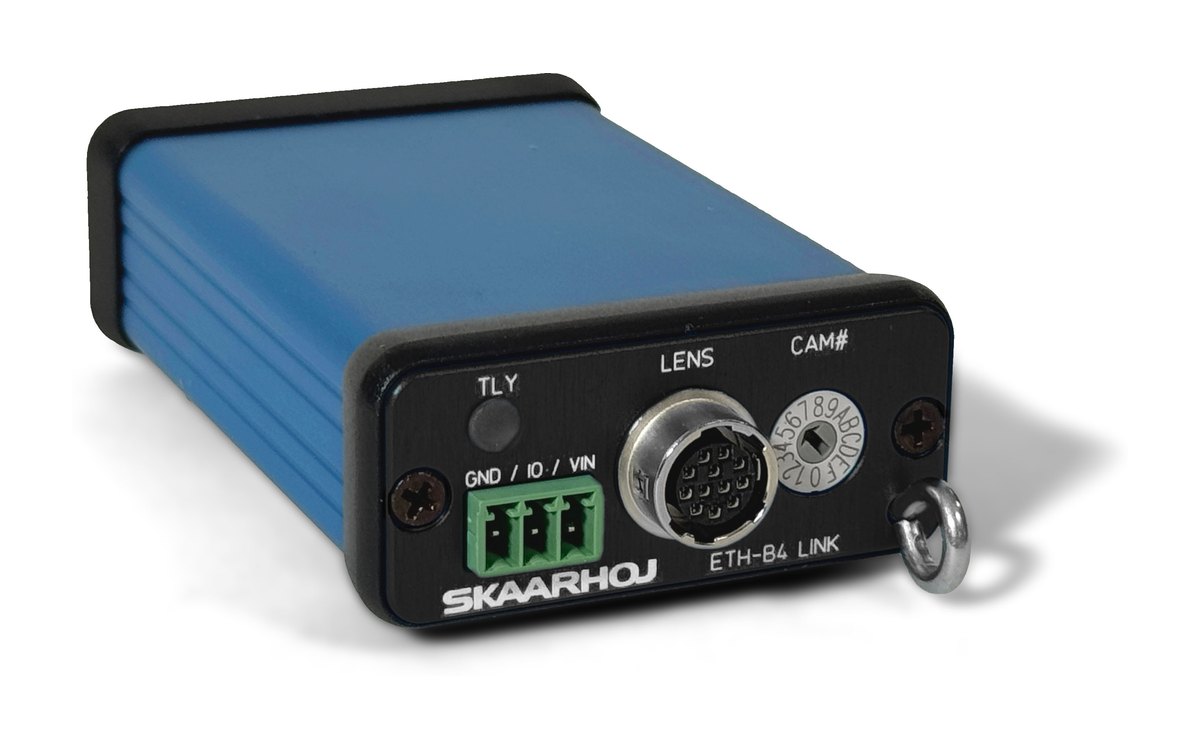

ETH-B4 Link and TCP Link
ETH-B4 Link controls the iris of a B4 lens with a 12-pin connector over Ethernet. TCP Link for ATEM lets a Crestron, AMX, Q-SYS or Extron system drive an ATEM switcher.
